Jumo RTD 542801
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Technical specifications

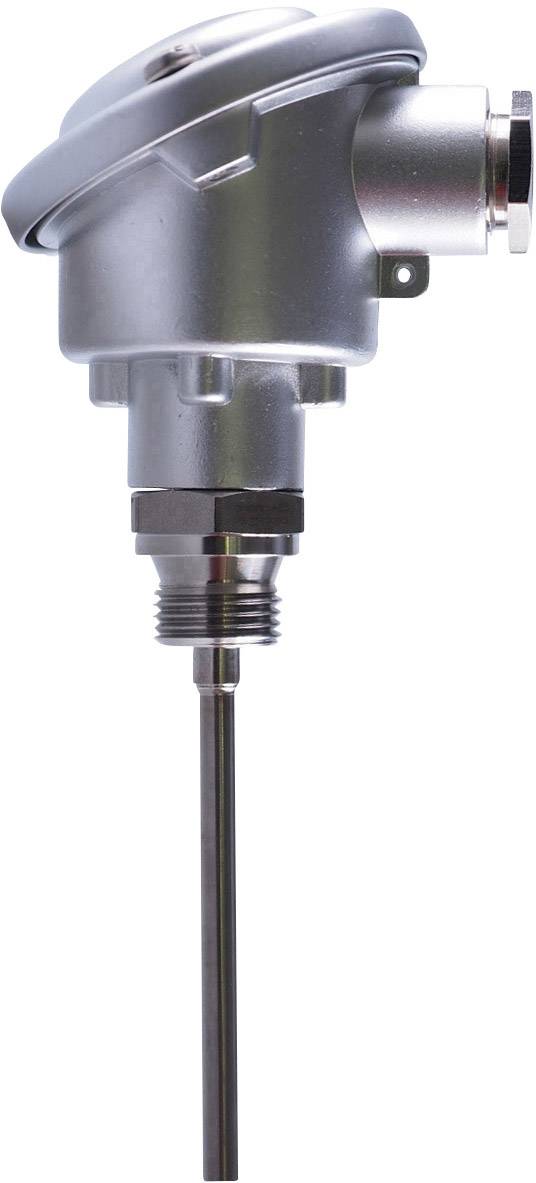

- Type: JUMO Etemp B, screw-in resistance thermometer with connection head shape B and continuous protective tube
- Operating temperature -50..+200°C.
- Measuring insert: 1x Pt100 in two-wire circuit
- Tolerance/class: Class B.
- Diameter: Ø 6mm
- Installation length: 300.0 mm
- Process connection: Screwing G 1/2.
- Type
542801
- Manufacturer part #
542801
- UKCA
not relevant
- Product type
RTD
Documents & Downloads
Datasheet
Datasheet 1928165 Jumo RTD 542801
User & Safety Instructions
User & Safety Instructions 1928165 Jumo RTD 542801
Description
Screw-in resistance thermometers for standard applications are preferably used for temperature measurements in liquid and gaseous media. The reliable tightness of this mounting design at both under- and over-pressure is an important selection criterion. Applications include air conditioning and refrigeration, heating and apparatus construction.
The connection head is suitable for temperatures up to +100 °C. In addition to the standard connection head form B, the BUZ type is also available.
A Pt100 temperature sensor in accordance with DIN EN 60751, class B in two-wire circuit is standard in the measuring insert; versions with Pt500 or Pt1000 are also possible. The connection is optionally also possible in four-wire circuit. As an option, a transmitter can be integrated into the connection head.
This text is machine translated.
The connection head is suitable for temperatures up to +100 °C. In addition to the standard connection head form B, the BUZ type is also available.
A Pt100 temperature sensor in accordance with DIN EN 60751, class B in two-wire circuit is standard in the measuring insert; versions with Pt500 or Pt1000 are also possible. The connection is optionally also possible in four-wire circuit. As an option, a transmitter can be integrated into the connection head.
This text is machine translated.
