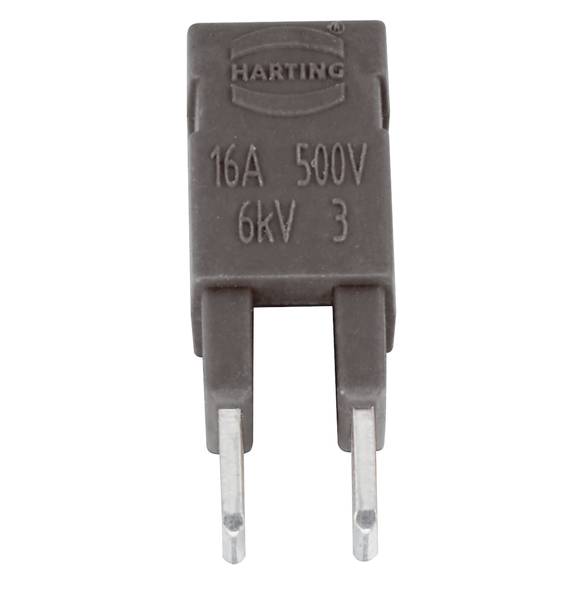

Jumper 09330009822 HARTING Content: 1 pc(s) Jumper
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Jumper
Type
09 33 000 9822
Manufacturer part #
09330009822
Connection
Jack connector
Datasheet (PDF)
Technical specifications
- HAN® ES PRESS series
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 5
- Material contacts: Copper alloy
- Contact surface: Tin-plated
- Material flammability class acc. To UL 94: V-0
- Net weight: 1.18 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Notes: When using jumpers in the HAN® ES PRESS, high-profile housings must be used.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Accessory type: Jumper
- Accessories description: 2x 1;transverse
- Material Accessories: Polyamide (PA)
- Colour accessories: RAL 5004 (black blue)
- Rated voltage according to UL: 600 V.
- Packaging type
Piece
- Type
09 33 000 9822
- Product type
Jumper
- Manufacturer part #
09330009822
- Connection
Jack connector
- Content
1 pc(s)
- Material
Polyamide
- Max. temperature
125 °C
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3009193 Jumper 09330009822 HARTING Content: 1 pc(s) Jumper
Datasheet 3009193 Jumper 09330009822 HARTING Content: 1 pc(s) Jumper
User & Safety Instructions
User & Safety Instructions 3009193 Jumper 09330009822 HARTING Content: 1 pc(s) Jumper
Description
Jumper, 2x 1, cross, polyamide (PA), RAL 5004 (black blue)
