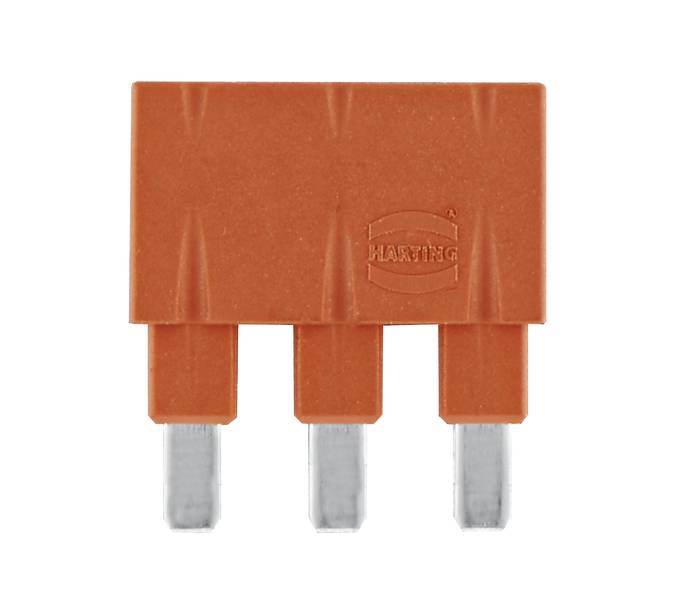

Jumper 09330009831 HARTING Content: 1 pc(s) Jumper
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Jumper
Number of pins
3
Type
09 33 000 9831
Manufacturer part #
09330009831
Datasheet (PDF)
Technical specifications
- HAN® ES PRESS series
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 5
- Material contacts: Copper alloy
- Contact surface: Tin-plated
- Material flammability class acc. To UL 94: V-0
- Net weight: 2.46 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Notes: When using jumpers in the HAN® ES PRESS, high-profile housings must be used.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Accessory type: Jumper
- Accessory description: 1x 3; length
- Material Accessories: Polyamide (PA)
- Colour accessories: RAL 3018 (strawberry red)
- Rated voltage according to UL: 600 V.
- Packaging type
Piece
- Type
09 33 000 9831
- Product type
Jumper
- Manufacturer part #
09330009831
- Number of pins
3
- Connection
Jack connector
- Total no. of pins
3
- Content
1 pc(s)
- Material
Polyamide
- Max. temperature
125 °C
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3009180 Jumper 09330009831 HARTING Content: 1 pc(s) Jumper
Datasheet 3009180 Jumper 09330009831 HARTING Content: 1 pc(s) Jumper
User & Safety Instructions
User & Safety Instructions 3009180 Jumper 09330009831 HARTING Content: 1 pc(s) Jumper
Description
Jumper, 1x 3, length, polyamide (PA), RAL 3018 (electrode red)
