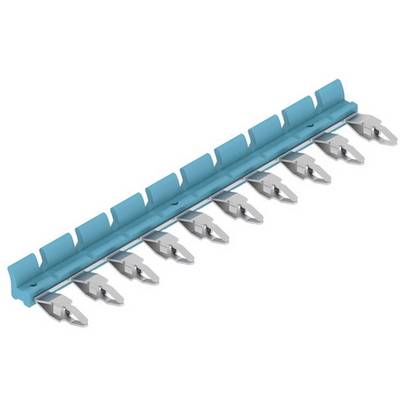

Jumper 2556440000 300 V Number of pins: 10 Blue 10 pc(s) Weidmüller TCC 6.4/10 BL Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Jumper
Content
10 pc(s)
Factory colour
Blue
Mounting type
Push-fit
Technical specifications
- Storage temperature: -40 °C - +85 °C
- Nominal current: 17.5 A
- Insulation: Yes
- Contact protection: Yes
- Number of bridged terminals: 10
- grid: 6.4 mm
- Mounting type: Plugged
- Rated current: 10 A
- flammability class according to UL 94: V-0
- Packaging type
Piece
- Product type
Jumper
- Content
10 pc(s)
- Factory colour
Blue
- Mounting type
Push-fit
- Operating voltage
300 V
- Max. operating voltage
300 V
- Operating voltage
300 V (max)
- Number of pins
10
- Weight
2.3 g
- Compatible with
Weidmüller
- Compatible with series
Weidmüller TERMS series
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
4.8 mm
- Height
13.1 mm
- Length
61 mm
- Dim
(L x W x H) 61 x 4.8 x 13.1 mm
- Type
TCC 6.4/10 BL
- UKCA
yes
