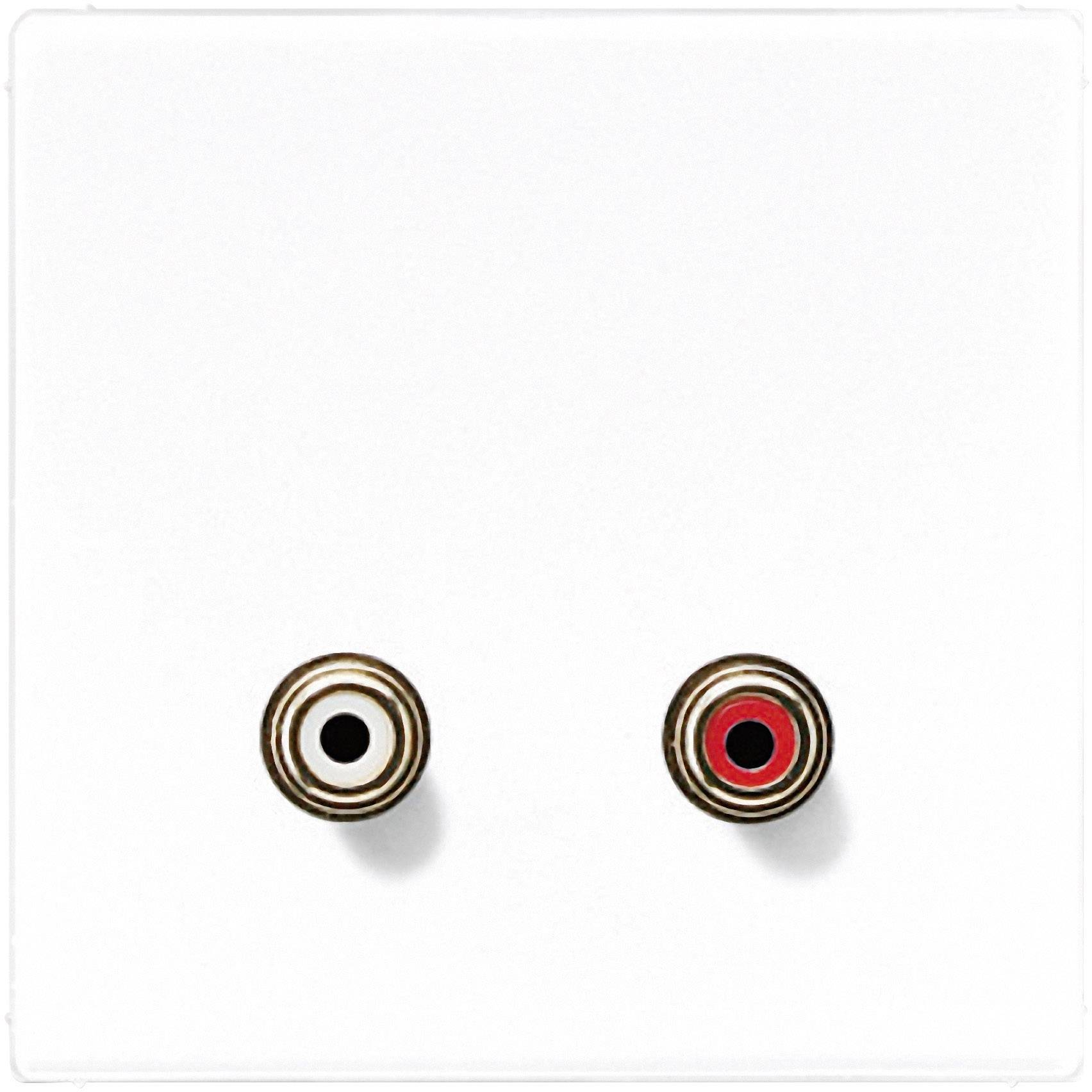

Jung Insert RCA LS 990, LS design, LS plus Alpine white MALS1021WW 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
Rca Audio LS series alpine white
- Switch type function
RCA
- Product type
Switch product range
- Switch type component
Insert
- Type series
LS 990
LS design
LS plus
- Factory colour
Alpine white
- Content
1 pc(s)
- Similar RAL
9010
- Material
PVC
White
9016
Screwing
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 554273 Jung Insert RCA LS 990, LS design, LS plus Alpine white MALS1021WW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 554273 Jung Insert RCA LS 990, LS design, LS plus Alpine white MALS1021WW 1 pc(s)
Description
Multimedia connection system
Rca Audio (complete with bearing ring, screw attachment).
Technical Data RCA Audio
Nominal Voltage: DC 50 V
Frequency range: 20 Hz ... 20 kHz
Contact resistance: ≤ 20 mΩ
Isolation resistance: 100 MΩ
Voltage strength: AC 500 V~ (50/60Hz) at 1 min 2 mA
Plug and Abziehkrafte: 3... 25 N
Mating cycles: ≥ 1000
Pass-through socket: white (left) 180°, red (right) 180°
Contact material: gold-plated
Mounting depth 14 mm
Ambient temperature: - 5... +45 °C
Assembly instructions: installation in devices connection box (depth socket).
This text is machine translated.
Rca Audio (complete with bearing ring, screw attachment).
Technical Data RCA Audio
Nominal Voltage: DC 50 V
Frequency range: 20 Hz ... 20 kHz
Contact resistance: ≤ 20 mΩ
Isolation resistance: 100 MΩ
Voltage strength: AC 500 V~ (50/60Hz) at 1 min 2 mA
Plug and Abziehkrafte: 3... 25 N
Mating cycles: ≥ 1000
Pass-through socket: white (left) 180°, red (right) 180°
Contact material: gold-plated
Mounting depth 14 mm
Ambient temperature: - 5... +45 °C
Assembly instructions: installation in devices connection box (depth socket).
This text is machine translated.
