JYA-NAY JY10F332MY75N+DL5MM Suppression capacitor Radial lead 3.3 nF 440 V AC 20 % 1 pc(s)
Part number:
Item no:
Product type
Suppression capacitor
Type
Radial lead
Capacity (elec.)
3.3 nF
Tolerance ±
20 %
Max. temperature
125 °C
Datasheet (PDF)
Highlights & Details
JYA-NAY suppression condenser 3.3nF X1/Y2 RM7.5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series JY
- APPROVALS: TÜV, ENEC, CQC
- Design_1: Radial
- Ceramic type Y5V
- Technology: Ceramic noise suppression capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- PROPERTIES_1: NOMINAL VOLTAGE (50/60HZ): X1 440V AC (UL/CSA 250V AC); Y2 250V AC
- Minimum insulation coating of 0.4mm
- Flame-retardant coating according to UL94-0
- High operating temperature of 125 °C (UL/CSA: 85 °C)
- Disk thickness 5 mm
- 12 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:7.5 mm
- Climate category IEC 25/125/21
- Capacitance 3.3 nF
- Capacity_1: 3.3
- Capacitance unit: NF
- Capacity Tolerance 20%
- Dielectric Y5V
- Nominal voltage AC 440 V
- Class X1/Y2
- Insulation resistance_1: 10 ohms
- Product type
Suppression capacitor
- Type
Radial lead
- Capacity (elec.)
3.3 nF
- Nominal voltage
440 V AC
- Tolerance ±
20 %
- (Ø)
12 mm
- CS
7.5 mm
- Material
Ceramic
- Min. temperature
25 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(Ø) 12 mm
- RoHS-compliant
Yes
- Type
JY10F332MY75N+DL5MM
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-25 °C
- Certification marks
IEC/EN 60384-14 2013, EN 60384-14 2013, IEC EN 60384-14
Documents & Downloads
Datasheet
Datasheet 3463020 JYA-NAY JY10F332MY75N+DL5MM Suppression capacitor Radial lead 3.3 nF 440 V AC 20 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463020 JYA-NAY JY10F332MY75N+DL5MM Suppression capacitor Radial lead 3.3 nF 440 V AC 20 % 1 pc(s)
Description

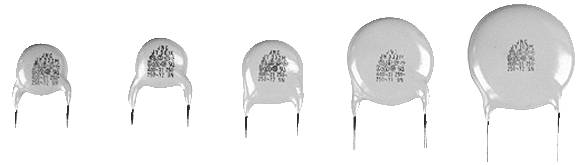

Ceramic noise suppression capacitors X1,Y2
