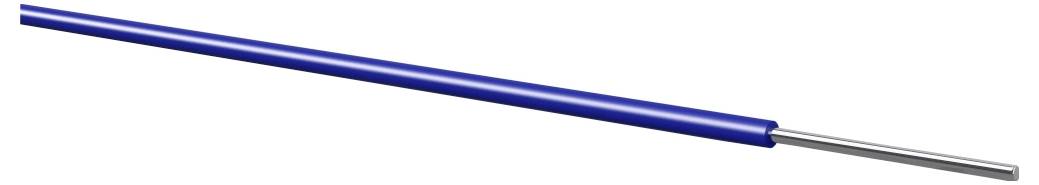

Kabeltronik 070110007 Jumper wire Yv 1 x 1 mm² Blue 100 m
Part number:
Item no:
Product type
Jumper wire
No. of leads
1 x
Cross section (each core)
1 mm²
Cable type
Yv
Content
100 m
Datasheet (PDF)
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 10.00 kg/km.
- CU weight kg/km: 7.50 kg/km.
- Item group name: Yv
- Wire Ø 1.8 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Use: Switch or shunting wire for communications technology, in telecommunication systems as well as all areas of general wiring technology.
- Product type
Jumper wire
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
1 mm²
- Insulation material
PVC
- Cable type
Yv
- Nominal voltage
900 V
- Halogen-free
No
- Manufacturer part #
070110007
- Factory colour
Blue
- Core layout
1 mm
- Material (details)
Cu-wire, VZ.
- Certification marks
none
- Test voltage
2500 V
- Cross section
1 x 1 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
Yv 1,0/1,8 mm bl
Documents & Downloads
Datasheet
Datasheet 3805131 Kabeltronik 070110007 Jumper wire Yv 1 x 1 mm² Blue 100 m
User & Safety Instructions
User & Safety Instructions 3805131 Kabeltronik 070110007 Jumper wire Yv 1 x 1 mm² Blue 100 m
Description
Jumper or shunting wire for communications technology, in telecommunication systems as well as all areas of general wiring technology.
This text is machine translated.
This text is machine translated.
