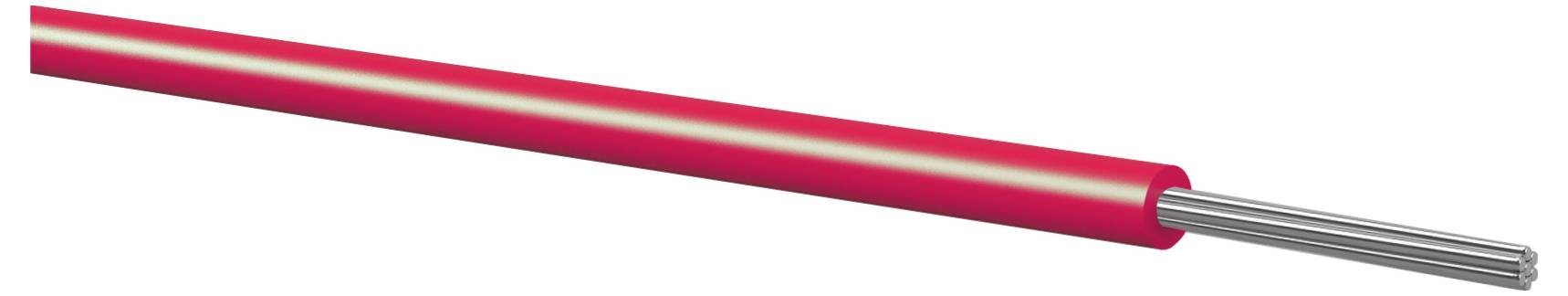

Image similar
Image similar
Kabeltronik 270102008 Braid TSR 1 x 0.56 mm² Red 500 m
Part number:
Item no:
Product type
Braid
No. of leads
1 x
Cross section (each core)
0.56 mm²
Cable type
TSR
Content
500 m
Datasheet (PDF)
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 7.50 kg/km.
- CU weight kg/km: 5.50 kg/km.
- Item group name: TSR
- Wire Ø 1.45 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Termipoint cables enable fast, reliable and solder-free cable connections in electrical and electronic devices, especially in confined spaces.
- Product type
Braid
- No. of leads
1 x
- Content
500 m
- Cross section (each core)
0.56 mm²
- Insulation material
PVC
- Cable features
Flame-retardant
- Cable type
TSR
- Nominal voltage
300 V
- AWG max.
20
- Halogen-free
No
- Manufacturer part #
270102008
- Factory colour
Red
- Core layout
7 x 0,320 mm
- Material (details)
Cu-strand, VZ.
- Certification marks
none
- Test voltage
2000 V
- Cross section
1 x 0.56 mm²
- Max. temperature range (flexible installation)
+105 °C
- Min. temperature range (flexible installation)
-10 °C
- Max. temperature range (fixed installation)
+105 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
TSR 20-728, rt
Documents & Downloads
Datasheet
Datasheet 3805120 Kabeltronik 270102008 Braid TSR 1 x 0.56 mm² Red 500 m
User & Safety Instructions
User & Safety Instructions 3805120 Kabeltronik 270102008 Braid TSR 1 x 0.56 mm² Red 500 m
Description
Termipoint cables enable a fast, reliable and solder-free cable connection in electrical and electronic devices, especially where space is limited.
