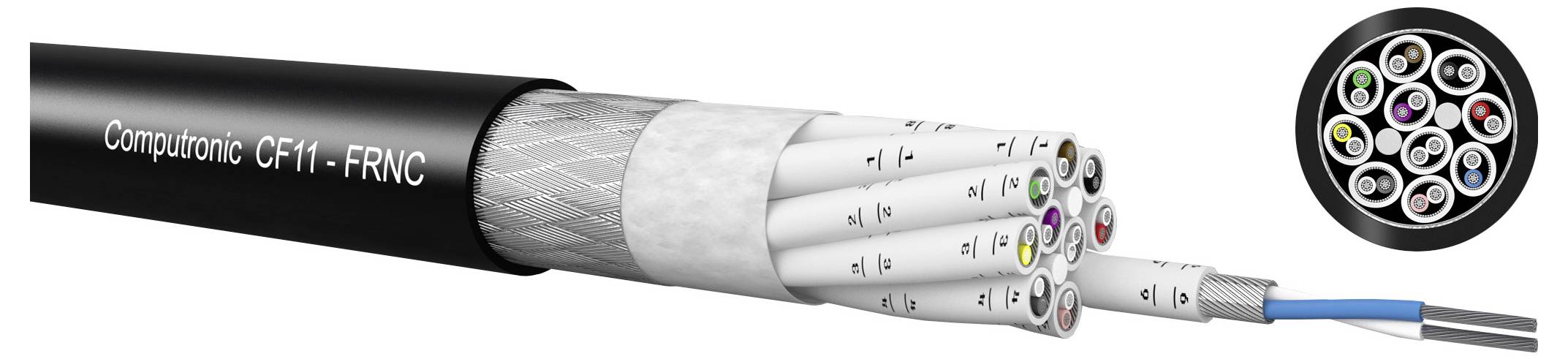

Kabeltronik 8308H1500 Multicore cable Computronic CF11 8 x 0.15 mm² Black 100 m
Part number:
Item no:
Product type
Multicore cable
Cable type
Computronic CF11
No. of leads
8 x
Cross section (each core)
0.15 mm²
Content
100 m
Datasheet (PDF)
Technical specifications
- Type: Multi-conductor cables
- Weight kg/km: 95.30 kg/km.
- CU weight kg/km: 54.80 kg/km.
- Uses: High quality FRNC multi-core specifically designed for professional analogue transmission of microphone signals in broadcasters, theaters, sports venues and studios.
- Number of pairs: 4
- Elemental shield:Cu-spiral shield, VZ.
- Element coat: PETE
- Overall shield: Copper braid, VZ.
- Conductor material: Cu-strand, VZ.
- Sheath material: FRNC
- Product type
Multicore cable
- Cable type
Computronic CF11
- No. of leads
8 x
- Cross section (each core)
0.15 mm²
- Cross section
8 x 0.15 mm²
- Cable features
Shielded
Flame-retardant
- Outside Ø
7.7 mm
- Factory colour
Black
- Content
100 m
- Bend radius (no. of ODs for fixed installation)
12
- Halogen-free
Yes
- Shielded
Yes
- Manufacturer part #
8308H1500
- Insulation material
PE
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Core layout
19 x 0.10 mm
- Type
Computronic CF11 4x2x0,15 qmm
Documents & Downloads
Datasheet
Datasheet 3804749 Kabeltronik 8308H1500 Multicore cable Computronic CF11 8 x 0.15 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 3804749 Kabeltronik 8308H1500 Multicore cable Computronic CF11 8 x 0.15 mm² Black 100 m
Description
Absolutely high quality FRNC Multicore specially designed for the professional, analogue transmission of microphone signals in broadcasters, theaters, sports facilities and studios.
