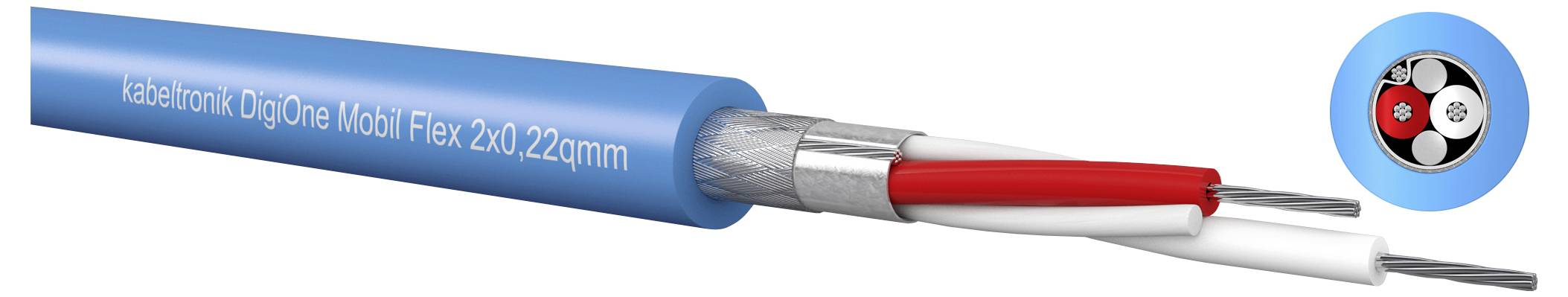

Kabeltronik DigiOne Mobil PURFlex 2x0,22 qmm DMX Cable
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: Multi-conductor cables
- Weight kg/km: 47.00 kg/km.
- CU weight kg/km: 18.00 kg/km.
- Product group name: DigiOne Mobil PURFlex
- Bending radius quiet: Min. 10 x
- Use: 1-pair digital cable in crushproof PUR design for mobile DMX applications.
- Wire diameter 1.7 mm
- Overall shield: Copper braid, VZ.
- Conductor material: Cu-strand, VZ.
- Conductor construction 7 x 0.20 mm
- Sheath material: PUR
- AES/EBU standard
- Temperature range, moving (max.): +80°C.
- Temperature range, flexible (min.): -15°C.
- Special features: Also suitable for harsh outdoor use. Double shielding for maximum resistance to interference. A drain wire is fed for a simple shield contact.
- Insulation material PE
- Outer diameter: 6 mm
- Temperature range, fixed installation (max.): +80°C
- Min. Temperature range (fixed installation): -35°C.
- Cable use
DMX
- Product type
DMX Cable
- Cable type
Digital cable
- Version
Cable
- Cores
2
- Cross section per core
0.22 mm²
- Cross section
2 x 0.22 mm²
- Shielding
Braid shielding
- Factory colour
Blue
- Cable features
PUR coating
Shielded
Documents & Downloads
Datasheet
Datasheet 3804887 Kabeltronik DigiOne Mobil PURFlex 2x0,22 qmm DMX Cable
User & Safety Instructions
User & Safety Instructions 3804887 Kabeltronik DigiOne Mobil PURFlex 2x0,22 qmm DMX Cable
Description
1-paired digital cable in impact-resistant PUR design for mobile DMX applications.
