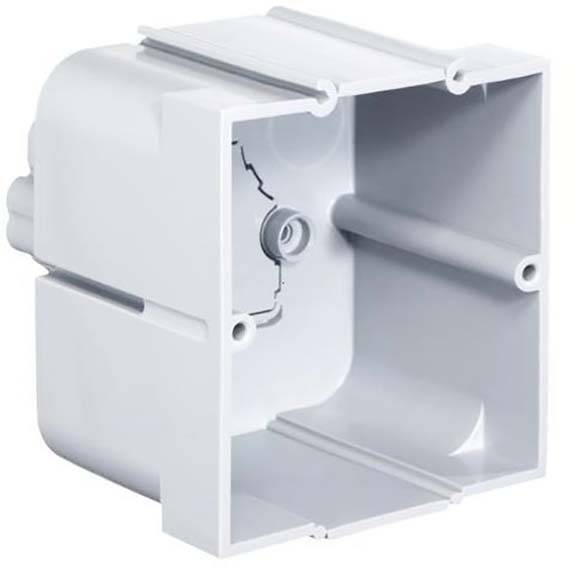

Kaiser Elektro 1159-62 Dry lining box Halogen-free (Ø x H) 16 mm x 50 mm 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser device socket UP IP65 68x70x50mm Kst
- For combinations with telescope device box (Part No. 1159-61Stable hold on wall and ceilingFor insulation thickness from 80 to 200 mm
Technical specifications
- Cable entries up to Ø 16 mm: 2
- Product type
Dry lining box
- Features
Halogen-free
- Mounting type
Exterior wall insulation
- Max. fire resistance
650 °C
- Content
10 pc(s)
- Dim
(Ø x H) 16 mm x 50 mm
- Length
68 mm
- Width
70 mm
- Height
50 mm
- Depth
50 mm
- (Ø)
16 mm
Documents & Downloads
Datasheet
Datasheet 2754688 Kaiser Elektro 1159-62 Dry lining box Halogen-free (Ø x H) 16 mm x 50 mm 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2754688 Kaiser Elektro 1159-62 Dry lining box Halogen-free (Ø x H) 16 mm x 50 mm 10 pc(s)
Description
Combi device socket UP IP65 68 x 70 x 50 mm Kst, for combinations with Article No. 1159-61.Telescopic device carrier and socket. For the secure installation of lights, motion detectors and many other devices in and on insulated façades. Optimised for today's insulation thicknesses, the telescopic products enable a wide range of applications in insulation with thicknesses from 80 to 200 mm. The two pipe entries of the basic carrier ensure a secure pipe connection, the cable guide integrated in the carrier arm provides for a simple and fast cable entry.
This text is machine translated.
This text is machine translated.
Features
- Equipment support for attachments with a total weight of up to 5 kgConnector socket can be combined in standard spacing 71 mmTube entries on the carrier with internal cable guideSimple cut-off from insulation strength thanks to integrated dimensionsFront fixing and depth stop prevent incorrect installationAttachment of the mounting plate/device box from the front
Scope of delivery
- 10 x combination connector socket.
