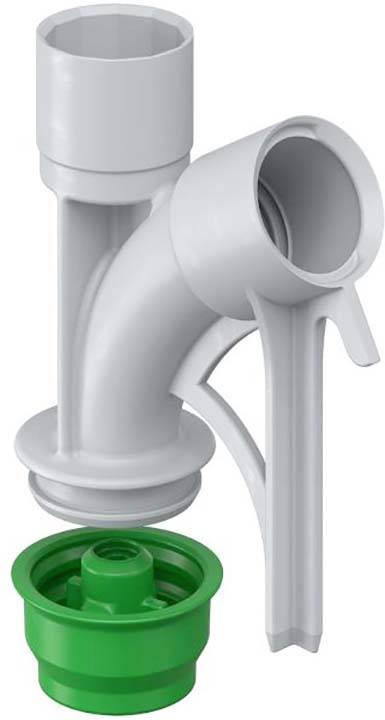

Kaiser Elektro 1202-04 Wall/ceiling bend (L x W x H) 70 x 30 x 77 mm 25 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser cable outlet tube concrete Ø20mm 70x30mm
- For connecting pipes or as ceiling outletFor formwork side closed with skinSuitable for all types of switching
Technical specifications
- DIN EN pipe Ø: 20 mm
- Product type
Wall/ceiling bend
- Max. fire resistance
650 °C
- Content
25 pc(s)
- Dim
(L x W x H) 70 x 30 x 77 mm
- Length
70 mm
- Width
30 mm
- Height
77 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2754648 Kaiser Elektro 1202-04 Wall/ceiling bend (L x W x H) 70 x 30 x 77 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 2754648 Kaiser Elektro 1202-04 Wall/ceiling bend (L x W x H) 70 x 30 x 77 mm 25 pc(s)
Description
Concrete construction wall and ceiling manifold 30°, for M20 pipes, with skin, 2-part, 70 x 30 x 77 mm.End and transition sleeves as well as wall and ceiling manifold 30° for ensuring a consistently functioning empty pipe system at transition points. The especially small design of the end and transition sleeves makes it possible to omit empty pipes even between narrow reinforcing steel without processing them laboriously. The optimal radius of the wall and ceiling manifold as well as the accurate fitting pipe supports prevent joint edges at transitions and thus guarantee the flexible retraction of cables from both directions.
This text is machine translated.
This text is machine translated.
Features
- Small design for simple installations between narrow reinforcing ironSimple line intake thanks to optimal manifold radiusInstallation for counter-forming with support element and counter bearing2-piece design with stable fixingEasy removal of the skin from plasterSmall visibility area, clean wall or Ceiling imageHalogen-free.
Scope of delivery
- 25 wall/ceiling manifolds.
