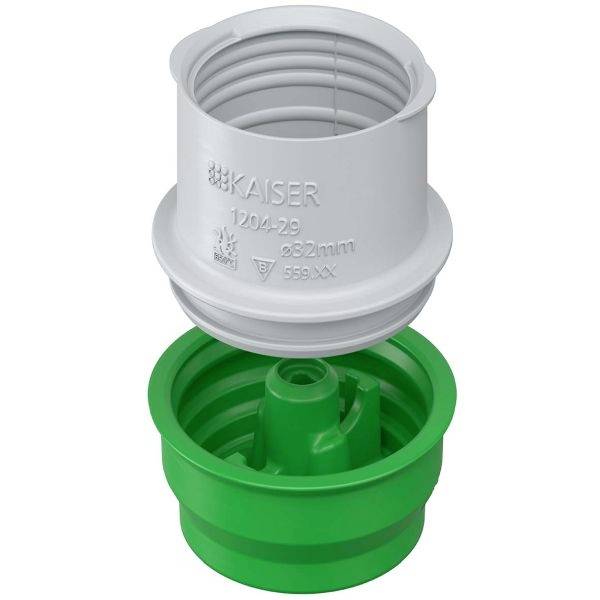

Kaiser Elektro 1204-29 End cap/grommet (Ø x H) 41 mm x 41 mm 25 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser cable outlet pipe concrete Ø32mm 1f
- For connecting pipes or as ceiling outletFor formwork side closed with skinSuitable for all types of switchingHalogen-free
Technical specifications
- DIN EN pipe Ø: 32mmNumber of parts: 2Visible area Ø 35 mm
- Product type
End cap/grommet
- Max. fire resistance
650 °C
- Content
25 pc(s)
- Dim
(Ø x H) 41 mm x 41 mm
- Height
41 mm
- (Ø)
41 mm
Documents & Downloads
Datasheet
Datasheet 2754665 Kaiser Elektro 1204-29 End cap/grommet (Ø x H) 41 mm x 41 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 2754665 Kaiser Elektro 1204-29 End cap/grommet (Ø x H) 41 mm x 41 mm 25 pc(s)
Description
Concrete construction end- and transfer sleeve, for M32 pipes, with plaster skin, 2-part, Ø 35 x 36 mm.End and transition sleeves as well as wall and ceiling manifold 30° for ensuring a consistently functioning empty pipe system at transition points. The especially small design of the end and transition sleeves makes it possible to omit empty pipes even between narrow reinforcing steel without processing them laboriously. The optimal radius of the wall and ceiling manifold as well as the accurate fitting pipe supports prevent joint edges at transitions and thus guarantee the flexible retraction of cables from both directions.
This text is machine translated.
This text is machine translated.
Features
- Small design for simple installations between narrow reinforcing ironSimple line intake thanks to optimal manifold radiusInstallation for counter-forming with support element and counter bearing2-piece design with stable fixingEasy removal of the skin from plasterSmall visibility area, clean wall or Ceiling image
Scope of delivery
- 25 x end-/transition nozzle.
