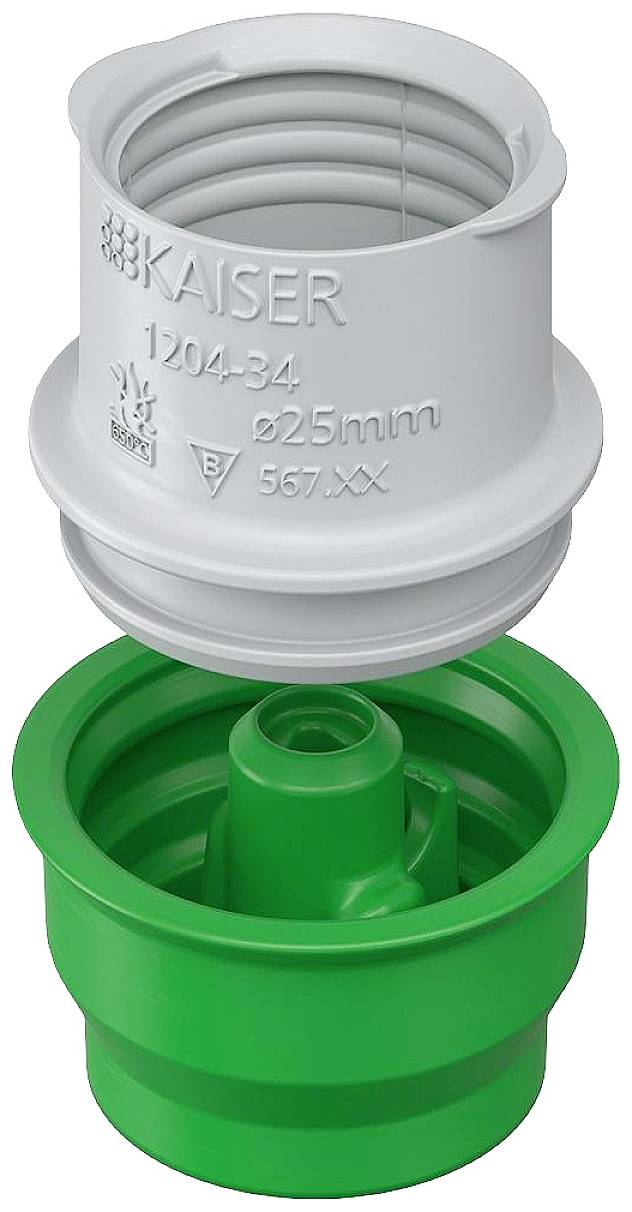

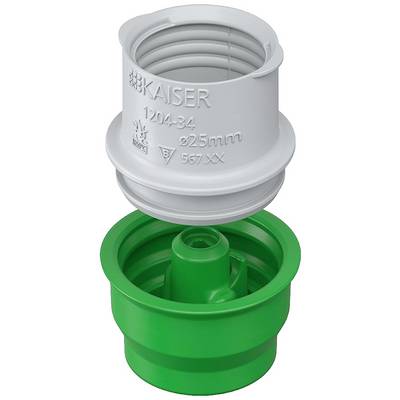

Kaiser Elektro 1204-34 End cap/grommet (Ø x H) 35 mm x 36 mm 25 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
KAISER cable outlet tube
- Concrete construction end- and transfer nozzleFor M25 pipes, with plaster skin2-part.Pack of 25
Technical specifications
- DIN EN pipe Ø: 25 mmVisible area Ø 28 mm
- Product type
End cap/grommet
- Max. fire resistance
650 °C
- Content
25 pc(s)
- Dim
(Ø x H) 35 mm x 36 mm
- Height
36 mm
- (Ø)
35 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2731145 Kaiser Elektro 1204-34 End cap/grommet (Ø x H) 35 mm x 36 mm 25 pc(s)
Description
End and transition sleeves as well as wall and ceiling manifold 30° for ensuring a consistently functioning empty pipe system at transition points. The especially small design of the end and transition sleeves makes it possible to omit empty pipes even between narrow reinforcing steel without processing them laboriously. The optimal radius of the wall and ceiling manifold as well as the accurate fitting pipe supports prevent joint edges at transitions and thus guarantee the flexible retraction of cables from both directions.
This text is machine translated.
This text is machine translated.
Features
- Small design for simple installations between narrow reinforcing ironSimple line intake thanks to optimal manifold radiusInstallation for counter-forming with support element and counter bearing2-piece design with stable fixingEasy removal of the skin from plasterSmall visibility area, clean wall or Ceiling imageFor connecting pipes or as ceiling outletFor formwork side closed with skinSuitable for all types of switchingHalogen-free.
