Kaiser Elektro 1265-11 Ceiling lining box Halogen-free (Ø x H) 60 mm x 111.0000 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser connection box concrete IP3X Kst
- Box rear part with holder for light hooks according to DIN EN 60670 (50 N)2-piece with molded rear-partSuitable for all types of switching
Technical specifications
- Mounting hole dia. 60 mm.Recess openings for pipes DIN EN Ø 20/25 mm: 7Markings for cables up to Ø 16 mm: 7Number of parts: 2
- Product type
Ceiling lining box
- Features
Halogen-free
- Mounting type
Concrete
- Max. fire resistance
650 °C
- Content
1 pc(s)
- Factory colour
Red
Green
- Dim
(Ø x H) 60 mm x 111.0000 mm
- Length
94 mm
- Width
75 mm
- Height
111.0000 mm
- Depth
95 mm
- (Ø)
60 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2754708 Kaiser Elektro 1265-11 Ceiling lining box Halogen-free (Ø x H) 60 mm x 111.0000 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2754708 Kaiser Elektro 1265-11 Ceiling lining box Halogen-free (Ø x H) 60 mm x 111.0000 mm 1 pc(s)
Description

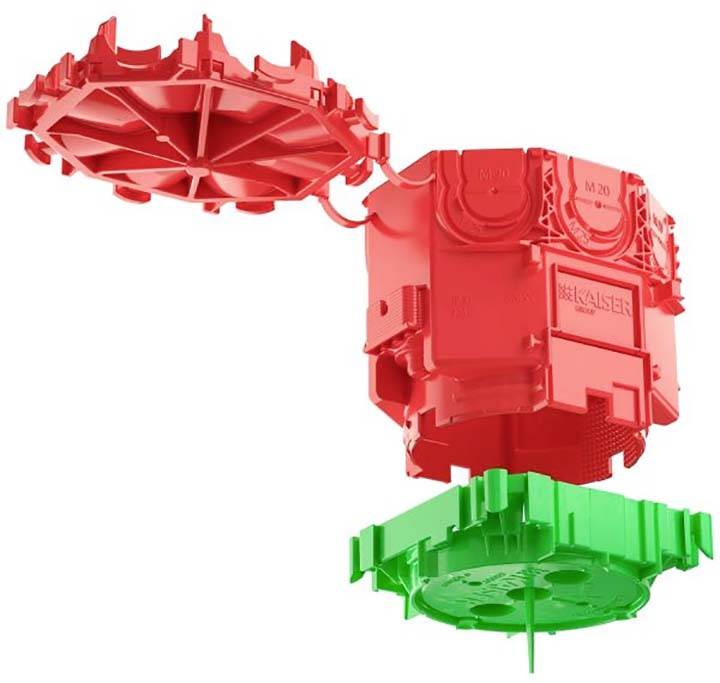

Concrete construction, B¹ ceiling junction box, 2-part, outlet opening Ø 60 mm, depth 95 mm, with lamp hook mounting.The new B¹ ceiling sockets simplify the installation on the ceiling formwork. The innovative pipe inserts allow the pipes to be easily inserted into several ceiling boxes arranged in an escape, without having to cut them during the installation work. Due to the higher pipe entries, additional sections of the reinforcing iron are unnecessary and the empty piping on the ceiling is accelerated.
This text is machine translated.
This text is machine translated.
Features
- Usable light hooks:100 mm / Art.-No. 1225-10120 mm / Art.-No. 1225-12140 mm / Art.-No. 1225-14Suitable for all types of switchingA flat front panel allows the smooth insertion of reinforcing iron on the ceiling formworkInnovative pipe inserts for a fast processing on the construction siteLarger installed and installation spaceMounting a lamp hook according to DIN EN 60670The proven KAISER color system ensures a quick check of the installation.
Scope of delivery
- 1 x ceiling connection box.
