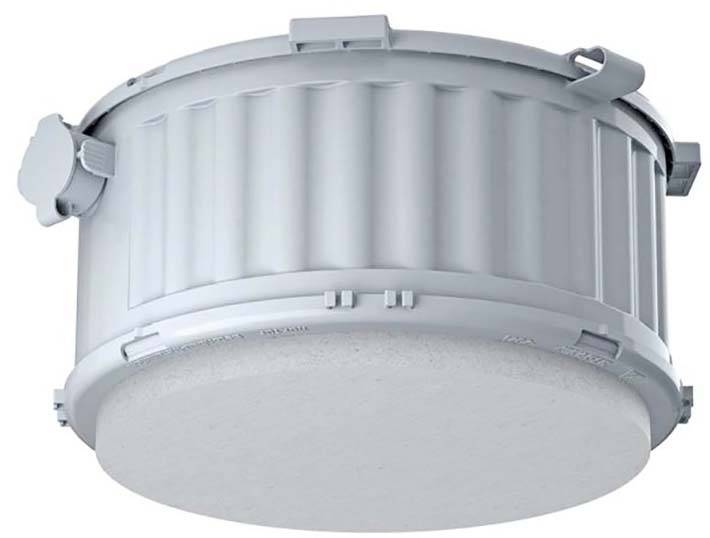

Kaiser Elektro 1282-71 Flush mount light socket Halogen-free (Ø x D) 210 mm x 120 mm 1 pc(s)

Built-in housing, HaloX® 180, with universal mineral fiberboard, successor type to 1291-22 f. Deck of records.The HaloX® system is designed one-piece for processing in the factory. Markings on the housing are used for easy alignment on the table. The casings with pre-assembled mineral fiberboard can be easily glued and can be aligned at 360° after sticking to the switch table. For the magnetic mounting housings with pre-assembled front parts are used to accommodate the system magnet (Art.-No. 1299-69/1299-70). Laying tolerances that can occur when plate elements are mounted are compensated by the size of the housing in conjunction with a variable cut-out surface. Due to the compact dimensions of the housing, the reinforcement can be simply placed around the housing. For lamps or loudspeakers with higher installation depths >= 110 mm, the installation space of the HaloX® housing can be increased later on the site of a concrete site with extension rings. The piping on the site of concrete construction is done without tools for pipes M20/M25 without internal pipe shortening.

This text is machine translated.
