Buy Kaiser Elektro 1564-01 Dry lining box Halogen-free (Ø x H) 60 mm x 60 mm 10 pc(s)

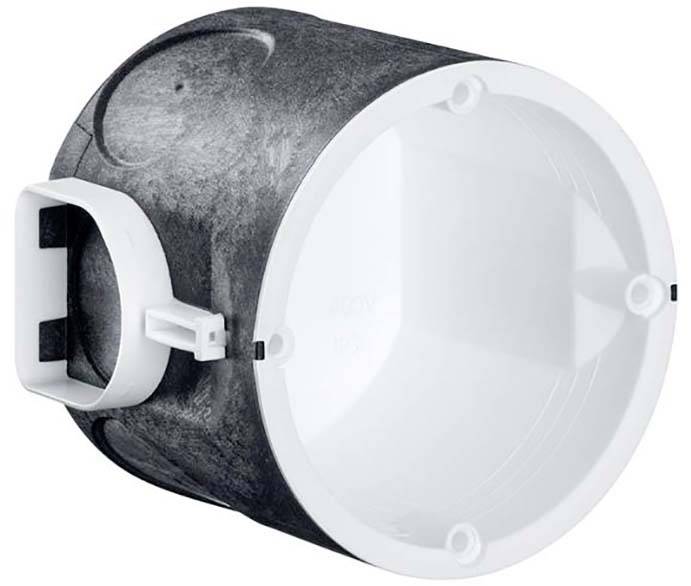

Round recessed back box in black and white with side cable retainer. Suitable for installing electrical components in partition walls.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kaiser device socket UP IP2X Ø60x60mm Kst rd E

For fire walls EI30 - EI120Also for minimum wall thickness ≤ 60 mmAlso for installation directly opposite to each otherWith 4 screw domes and 2 spreading claw fields

Technical specifications

Distance between device screws 60 mmTube insertions up to M25: 6Cable entries up to Ø 11.5 mm: 6For sound insulation walls up to 56 dB

Product type: Dry lining box

Features: Halogen-free

Mounting type: Flush-mount

Max. fire resistance: 650 °C

Content: 10 pc(s)

Dim: (Ø x H) 60 mm x 60 mm

Height: 60 mm

Depth: 60 mm

(Ø): 60 mm

Documents & Downloads

Datasheet

Datasheet 2754679 Kaiser Elektro 1564-01 Dry lining box Halogen-free (Ø x H) 60 mm x 60 mm 10 pc(s)

User & Safety Instructions

User & Safety Instructions 2754679 Kaiser Elektro 1564-01 Dry lining box Halogen-free (Ø x H) 60 mm x 60 mm 10 pc(s)

Description

Kaiser device socket UP IP2X Ø 60 x 60 mm Kst.The fire protection box is provided in fire protection walls of solid construction F30-F120 or EI30–EI120 the fire resistance duration despite electrical installations in place. Even if the required minimum wall thickness is fallen below 60 mm in the installation case on the one side or even directly opposite, the fire protection box ensures the safe and smoke-tight closure of the room. An integrated insulation film former closes the installation opening quickly and reliably in case of fire and thus prevents the transmission of flames and flue gases. Furthermore, fire propagation is excluded due to insufficient residual wall thickness.

This text is machine translated.

Features

Variable combination supports for pipes up to M25With fire protection cover can be used as junction boxMaintains the sound-proofing function of the wall.
