Buy Kaiser Elektro 9064-88 Cavity wall device lining box (Ø x D) 68 mm x 68 mm 10 pc(s)

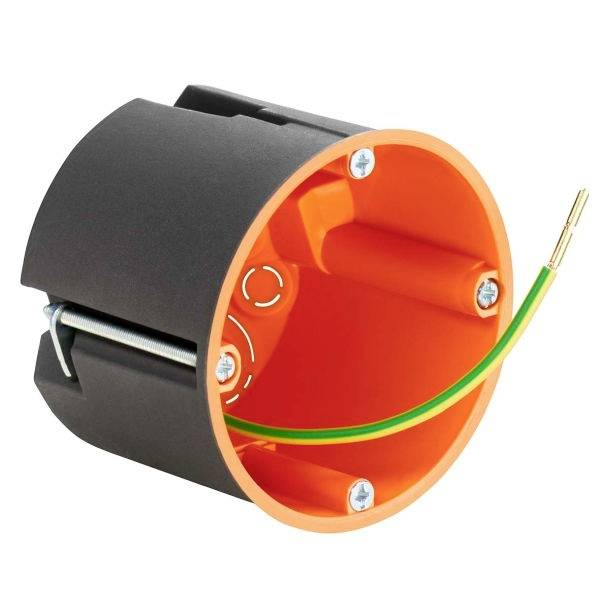

Black and orange recessed electrical box for electrical installations with a recognisable green and yellow earth wire.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kaiser connection box HW IP3X Ø68x68mm Kst

With shielding and potential discharge

Technical specifications

For panel thickness 7 - 40 mmMilling hole Ø 68 mmScrew distance 60 mmDevice screws 2Outbreak openings Ø 20 mm:4Cable inlets 3 x 2.5 mm² or 5 x 1.5 mm²: 2Cable entries 3 x 1.5 mm²: 4Cable entries for low voltages: 2

Product type: Cavity wall device lining box

Mounting type: Cavity wall

Content: 10 pc(s)

Dim: (Ø x D) 68 mm x 68 mm

Depth: 68 mm

(Ø): 68 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2754669 Kaiser Elektro 9064-88 Cavity wall device lining box (Ø x D) 68 mm x 68 mm 10 pc(s)

User & Safety Instructions

User & Safety Instructions 2754669 Kaiser Elektro 9064-88 Cavity wall device lining box (Ø x D) 68 mm x 68 mm 10 pc(s)

Description

Cavity wall device lining box, shielded, with device screws.Shielded device connection box for cavity wall installation. The conductive coating as protection against interference reduces radiation and exposure of sources of interference with predominantly electrical alternating field.

This text is machine translated.

Features

For the ecological electrical installation, biological constructionFunction earthing must only be connected to the functional potential equalization, not to the protective earth cable (PE conductor).
