Kaiser Elektro 9067-01 Cavity wall lining box (Ø x H) 74 mm x 74.0000 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser device socket UP HW IP3X Ø74x50mm Kst
- With holder bandFor device inserts 16 A
Technical specifications
- For panel thickness 12.5 - 40 mmMilling hole Ø 74 mmScrew distance 67 mm
- Product type
Cavity wall lining box
- Mounting type
Cavity wall
- Max. fire resistance
850 °C
- Content
1 pc(s)
- Factory colour
Orange
- Dim
(Ø x H) 74 mm x 74.0000 mm
- Width
74.0000 mm
- Height
74.0000 mm
- Depth
50 mm
- (Ø)
74 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2754634 Kaiser Elektro 9067-01 Cavity wall lining box (Ø x H) 74 mm x 74.0000 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2754634 Kaiser Elektro 9067-01 Cavity wall lining box (Ø x H) 74 mm x 74.0000 mm 1 pc(s)
Description

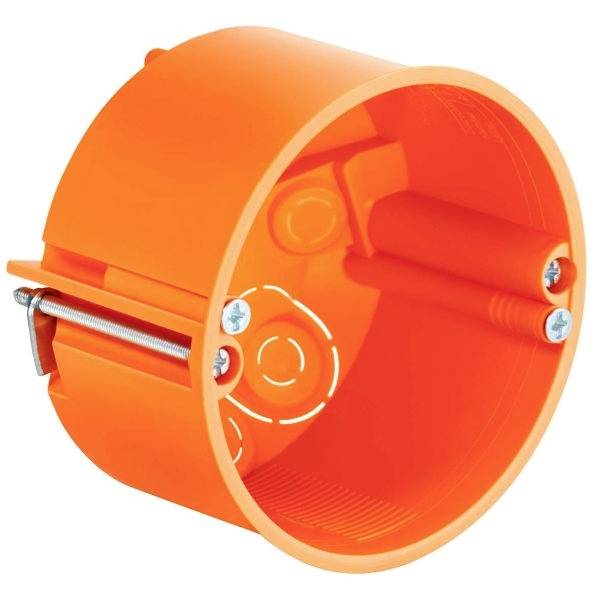

Perilex® hollow wall connector box, with device screws.The new KAISER hollow wall installation boxes with tested latch mounting technology and improved product features. A practical design and a specific selection of cable and pipe entries enable a variety of possible uses. Additional sockets for special applications such as installation in thinly planked walls or walls made of solid wood round off the wide range. The VDE certification documents the high quality standards.
This text is machine translated.
This text is machine translated.
Features
- With 2 countersunk head device screws Ø 4 mm, length 16 mm for the use of PERILEX inserts 16 APermanently secure attachment thanks to lug screwsUnbreakable insertions for lines and pipesCombined and through wiring with connection socketDevice mounting using pre-assembled device screws.
Scope of delivery
- 1 x connector box.
