Buy Kaiser Elektro 9068-76 Lining box Halogen-free (Ø x H) 68 mm x 35 mm 25 pc(s)

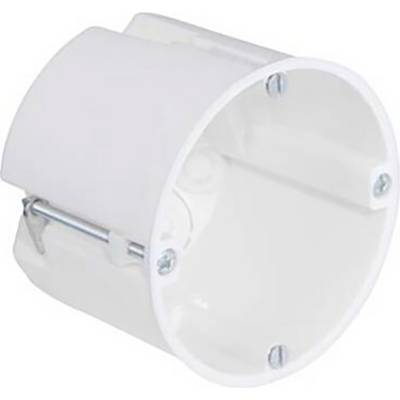

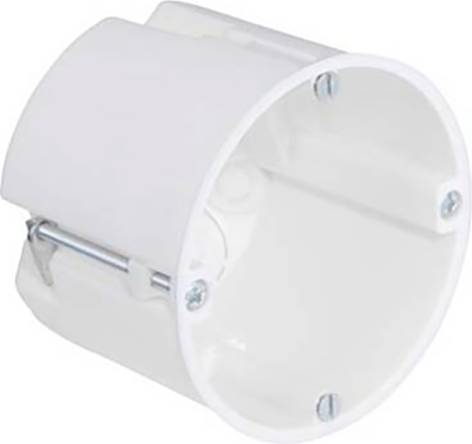

A white, round flush-mounted junction box with side openings and screw terminals, commonly used for electrical installations in walls.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kaiser connection box HW IP3X Ø68x61mm Kst

For planking that does not allow edge sinking (e. B. Metal planking)With thin retaining strap

Technical specifications

For panel thickness 0.2 - 40 mmMilling hole Ø 68 mmDevice screws 2Tube insertions Ø 20 mm: 4Cable entries 3 x 1.5 mm²: 4Cable inlets 3 x 2.5 mm² or 5 x 1.5 mm²: 2Cable entries for low voltages: 2

Product type: Lining box

Features: Halogen-free

Mounting type: Cavity wall

Max. fire resistance: 850 °C

Content: 25 pc(s)

Factory colour: White

Dim: (Ø x H) 68 mm x 35 mm

Height: 35 mm

Depth: 61 mm

(Ø): 68 mm

Documents & Downloads

Datasheet

Datasheet 2754644 Kaiser Elektro 9068-76 Lining box Halogen-free (Ø x H) 68 mm x 35 mm 25 pc(s)

User & Safety Instructions

User & Safety Instructions 2754644 Kaiser Elektro 9068-76 Lining box Halogen-free (Ø x H) 68 mm x 35 mm 25 pc(s)

Description

Hollow wall device connection box, halogen-free, for thin planking, with device screws.For walls with thin planking or small cavity, the O-range® range now offers a new device socket: Due to its installation depth of only 35 mm and the zero clamping technology, which provides a permanent firm grip, it is particularly suitable for walls with a low space or thin wall thickness.

This text is machine translated.

Features

With zero clamping technology for thin plankingLow mounting depth of 35 mmCable entries with integrated cable retentionDevice screws with flat countersunk headFor lines up to Ø 11.5 mm.
