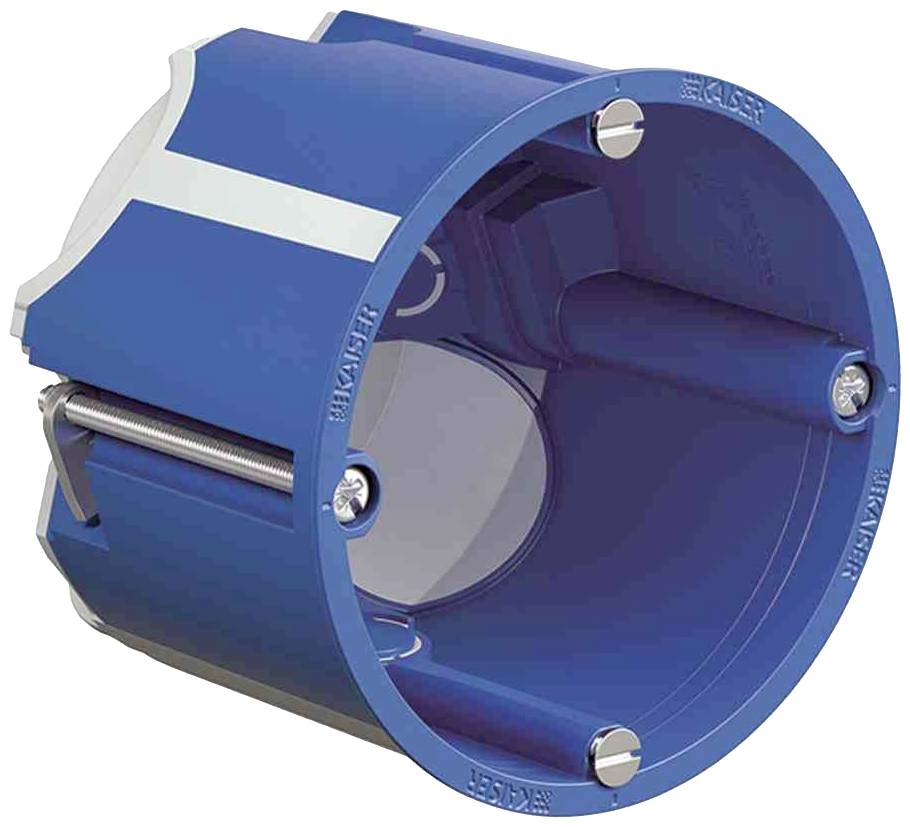

Kaiser Elektro 9069-04 Cavity wall device lining box Windproof (Ø x D) 68 mm x 61 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
KAISER connection box HW
- Cavity wall, device connection boxSound protection, Ø 68 mmFrom wall thickness 125 mmPack of 10
Technical specifications
- Milling hole Ø 68 mmScrew distance 60 mmTube insertions up to M25: 2Cable entries up to Ø 11.5 mm: 6For panel thicknesses up to 40 mmFor sound insulation walls up to 69 dB
- Product type
Cavity wall device lining box
- Features
Windproof
- Mounting type
Cavity wall
- Max. fire resistance
850 °C
- Content
10 pc(s)
- Dim
(Ø x D) 68 mm x 61 mm
- Depth
61 mm
- (Ø)
68 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2636977 Kaiser Elektro 9069-04 Cavity wall device lining box Windproof (Ø x D) 68 mm x 61 mm 10 pc(s)
Description
Sound-proof dry lining box 68The device and device connection boxes soundproof 68 ensures sound-proofing of the wall through its solid can body in combination with the sound-absorbing surface on the bottom of the can. Even with direct opposite installation the sound protection function of the wall is retained completely. The simple opening for pipes and pipes as well as the installation opening of 68 mm enables a quick mounting as well as simple retrofitting of existing electrical installations.
This text is machine translated.
This text is machine translated.
Features
- Maintains the sound-proofing function of the wallEven add-on installationFor installation openings Ø 68 mmFor the direct opposite installationSimple introduction for lines up to Ø 11.5 mm and pipes up to Ø M25Can be combined with each other and with the device socketAir-tight.
