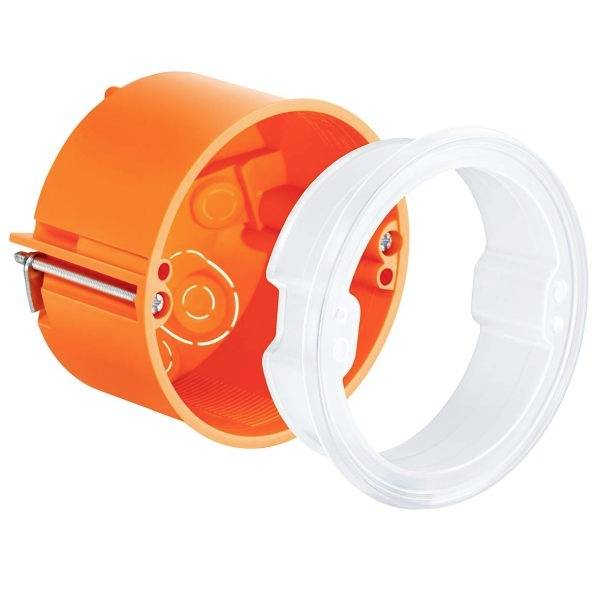

Kaiser Elektro 9075-01 Cavity wall lining box (Ø x D) 74 mm x 50 mm 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser device socket UP HW IP34 Ø74x50mm Kst Rnd
- With holder bandFor device inserts 16 A
Technical specifications
- Milling hole Ø 74 mmFor panel thickness 12.5 - 40 mmScrew distance 67 mm
- Product type
Cavity wall lining box
- Mounting type
Cavity wall
- Max. fire resistance
850 °C
- Content
10 pc(s)
- Factory colour
Orange
White
- Dim
(Ø x D) 74 mm x 50 mm
- Depth
50 mm
- (Ø)
74 mm
Documents & Downloads
Datasheet
Datasheet 2757488 Kaiser Elektro 9075-01 Cavity wall lining box (Ø x D) 74 mm x 50 mm 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2757488 Kaiser Elektro 9075-01 Cavity wall lining box (Ø x D) 74 mm x 50 mm 10 pc(s)
Description
Cavity wall device socket CEE 16 A.The new KAISER hollow wall installation boxes with tested latch mounting technology and improved product features. A practical design and a specific selection of cable and pipe entries enable a variety of possible uses. Additional sockets for special applications such as installation in thinly planked walls or walls made of solid wood round off the wide range. The VDE certification documents the high quality standards.
This text is machine translated.
This text is machine translated.
Features
- With sealing ring degree of protection IP 34 as well as 2 raised head device screws Ø 4 mm, length 20 mm, for using CEE-device inserts 16 APermanently secure attachment thanks to lug screwsUnbreakable insertions for lines and pipesCombined and through wiring with connection socketDevice mounting using pre-assembled device screws.
Scope of delivery
- 10 x connector box.
