Kaiser Elektro 9252-22 Device lining box Windproof (Ø x D) 68 mm x 48 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

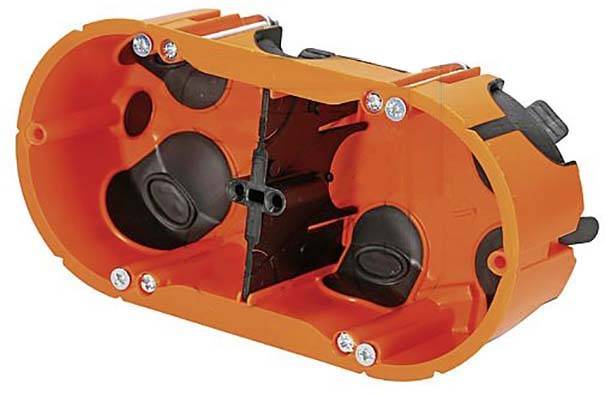

Kaiser Orange Econ 2, hollow wall multiple box
- Air-tight design with sealing membranesTool-free cable and pipe entriesIntegrated cable retention of the NYM cable, self-resistance of the pipesIsolation of the individual mounting openings in accordance with standard, by means of pluggable separator boardCan be combined with all applications of the O-range® program
Technical specifications
- For panel thickness 7 - 40 mmMilling hole Ø 2 x 68 mmDevice screws +/-: 4Central distance 71 mmTube insertions up to Ø 20 mm: 4Tube insertions up to Ø 25 mm: 2Cable inlets 3 x 2.5 mm² or 5 x 1.5 mm²: 1Cable entries 3 x 1.5 mm²: 1Number of device installation openings: 2
- Product type
Device lining box
- Features
Windproof
- Mounting type
Cavity wall
- Max. fire resistance
850 °C
- Content
1 pc(s)
- Factory colour
Orange
- Dim
(Ø x D) 68 mm x 48 mm
- Depth
48 mm
- (Ø)
68 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2754705 Kaiser Elektro 9252-22 Device lining box Windproof (Ø x D) 68 mm x 48 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2754705 Kaiser Elektro 9252-22 Device lining box Windproof (Ø x D) 68 mm x 48 mm 1 pc(s)
Description
Cavity wall device junction box, O-range ECON® 2, with device screws, depth 48 mm.WITH the new device connection sockets O-range ECON® 2 / 3 / 4, KAISER offers the perfect basis and thus a special comfort for the installation of all common mounting devices in multiple combinations. They simplify the wiring of several devices with each other due to their large installation opening without center bar and even enable the use of pre-wired mounting devices. When using different circuits or supply and communication connections within a combination, the individual equipment installation slots can be separated simply and as per the standard by the divider that can be used.
This text is machine translated.
This text is machine translated.
Features
- Comfortable installation of pre-wired inserts without spatial separationMaximum flexibility in mounting the device, generous tolerance compensationIsolation of the individual mounting openings in accordance with standard, by means of pluggable separator boardComplete mounting and installation with only one screw drive.
Scope of delivery
- 1 x device junction box.
