Buy Kaiser Elektro 9253-22 Device lining box Windproof (Ø x D) 68 mm x 48 mm 5 pc(s)

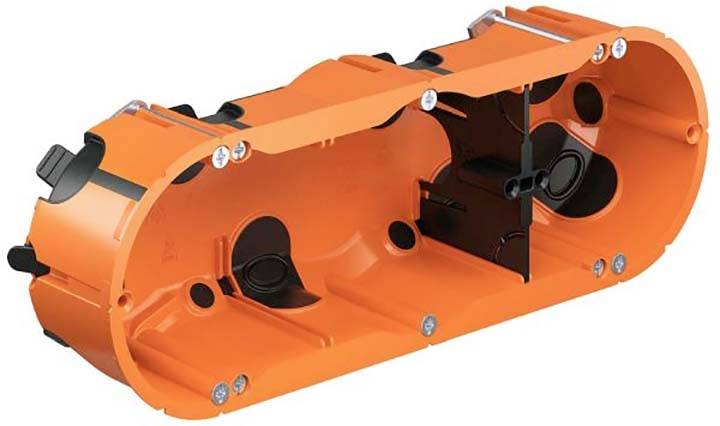

Orange plastic junction box with multiple openings and screw surfaces, suitable for flush mounting in walls.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kaiser Orange Econ 3, hollow wall multiple box

Air-tight design with sealing membranesTool-free cable and pipe entriesIntegrated cable retention of the NYM cable, self-resistance of the pipesIsolation of the individual mounting openings in accordance with standard, by means of pluggable separator boardCan be combined with all applications of the O-range® program

Technical specifications

For panel thickness 7 - 40 mmMilling hole Ø 3 x 68 mmCentral distance 71 mmNumber of device installation openings: 3Number of separators: 1Device screws +/-: 6Tube insertions up to Ø 20 mm: 6Tube insertions up to Ø 25 mm: 2Cable entries 3 x 1.5 mm²: 2Cable inlets 3 x 2.5 mm² or 5 x 1.5 mm²: 2

Product type: Device lining box

Features: Windproof

Mounting type: Cavity wall

Max. fire resistance: 850 °C

Content: 5 pc(s)

Factory colour: Orange

Dim: (Ø x D) 68 mm x 48 mm

Depth: 48 mm

(Ø): 68 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2754706 Kaiser Elektro 9253-22 Device lining box Windproof (Ø x D) 68 mm x 48 mm 5 pc(s)

User & Safety Instructions

User & Safety Instructions 2754706 Kaiser Elektro 9253-22 Device lining box Windproof (Ø x D) 68 mm x 48 mm 5 pc(s)

Description

Cavity wall device junction box, O-range ECON® 3, with device screws, depth 48 mm.WITH the new device connection sockets O-range ECON® 2 / 3 / 4, KAISER offers the perfect basis and thus a special comfort for the installation of all common mounting devices in multiple combinations. They simplify the wiring of several devices with each other due to their large installation opening without center bar and even enable the use of pre-wired mounting devices. When using different circuits or supply and communication connections within a combination, the individual equipment installation slots can be separated simply and as per the standard by the divider that can be used.

This text is machine translated.

Features

Comfortable installation of pre-wired inserts without spatial separationMaximum flexibility in mounting the device, generous tolerance compensationIsolation of the individual mounting openings in accordance with standard, by means of pluggable separator boardComplete mounting and installation with only one screw drive.
