Kaiser Elektro 9320-10 Dry lining box Halogen-free (Ø x H) 74 mm x 75 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
KAISER DEVICE SOCKET UP HW

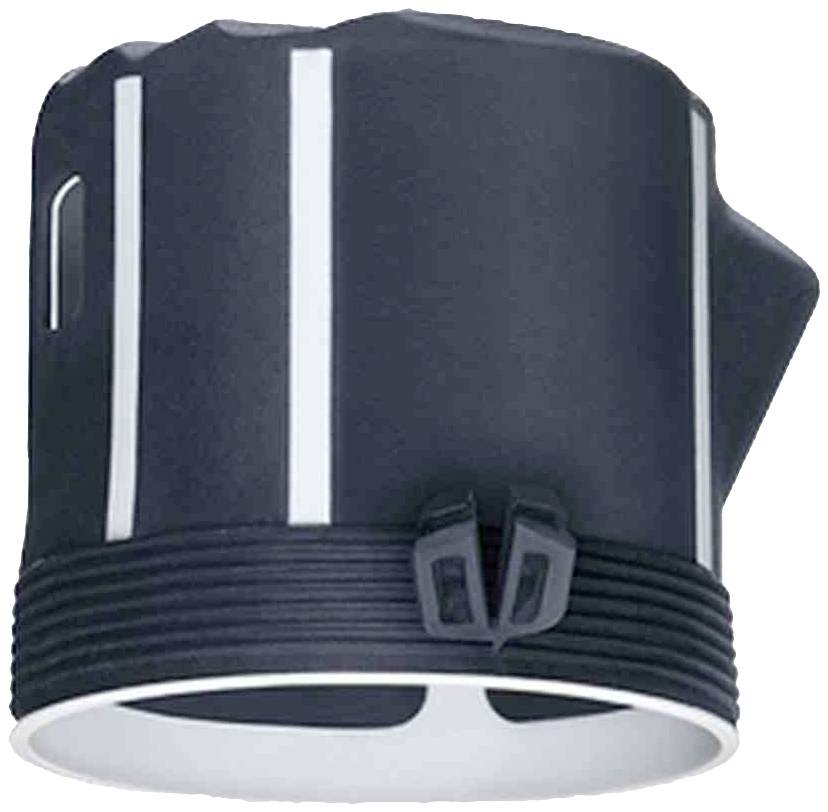

- ThermoX® LED panel-mounted caseCasing dimensions Ø 74 x 75 mmFor lamps DA up to Ø 70 mm, ET up to 60 mmPack of 10
Technical specifications
- Front panel mounting cut hole diameter 74 mm.Cable entries: 1Max. Mounting depth of LED-lights 60 mmMax. Lamp power 6.6 WattsMax. Ceiling outlet (DA) Ø 70 mm
- Product type
Dry lining box
- Features
Halogen-free
- Mounting type
Flush-mount
Cavity wall
- Content
10 pc(s)
- Dim
(Ø x H) 74 mm x 75 mm
- Height
75 mm
- Depth
75 mm
- (Ø)
74 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2635987 Kaiser Elektro 9320-10 Dry lining box Halogen-free (Ø x H) 74 mm x 75 mm 10 pc(s)
Description
ThermoX® LED panel-mounted caseThermoX® LED panel-mounted housing for air-tight installation of rigid and swiveling LED panel-mounted lights in different ceiling constructions. The housing protects the surrounding material (vapor barrier, insulation, etc.) from high operating temperatures as well as the LED light itself from contamination and creates an air-tight seal. In conjunction with the thermal separation between the lamp and the operating device, this ensures maximum service life.
This text is machine translated.
This text is machine translated.
Features
- For installation in insulated hollow ceilingsSubsequent installation from belowInstallation of the housing without any toolsGuaranteed airtight installationSurface structure on the back provides for optimal heat managementPermanent and secure hold of the lamp in the housingFor rigid and swiveling LED lightsCirculating air-tight seal lipRecessed swivel for aligning the lamp.
