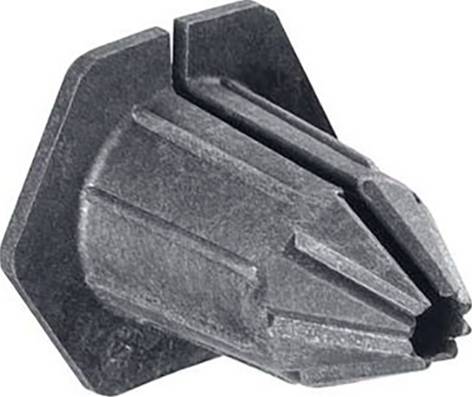

Kaiser Elektro 9459-01 Cable grommet 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser fire protection finished part rnd 100mm Ø20m
- For fire walls EI90For wall entry, wall outlet and passageWithout using fire-protection foam or putty
Technical specifications
- Min Wall thickness 100 mmInstallation opening (cavity wall) 20 mmInstallation opening (masonry) 20 mmFor lines 5 - 15 mmETA-approval: ETA-17-0449For sound insulation walls up to 76 dB
- Product type
Cable grommet
- Content
10 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2754650 Kaiser Elektro 9459-01 Cable grommet 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2754650 Kaiser Elektro 9459-01 Cable grommet 10 pc(s)
Description
Fire protection Line bulkhead system LS 90, for fire protection walls EI30 - EI90, made of insulation coating building material.Conduction and pipe bulkhead systems for fire protection closing of penetrations and entries in fire walls. The certified bulkheads are quickly and easily installed and can even be placed later on cables and pipes. You will receive the wall fire rating (EI90). In addition, the systems can also be used as wall outlets that allow the connection of electrical attachments.
This text is machine translated.
This text is machine translated.
Features
- Made from insulating materialSelf-closing of the installation openingDurable durability of building materialHalogen-free.
Scope of delivery
- 10 x cable gland
