Kaiser Elektro 9462-94 Dry lining box Halogen-free (Ø x D) 74 mm x 70 mm 5 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

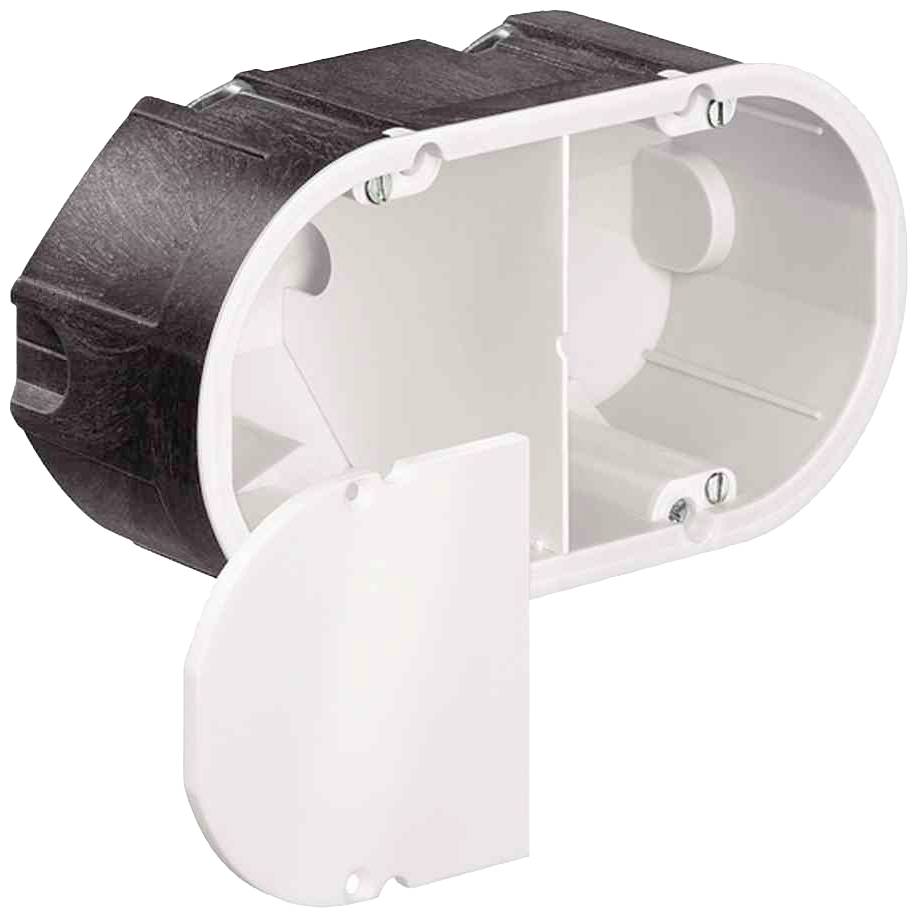

KAISER connection box HW
- Fire protection Electronic-socket HWD 90For fire walls EI30 -EI120With partition and coverPack of 5
Technical specifications
- For panel thickness 7 - 40 mmMilling hole Ø 2 x 74 mmScrew distance 60 mmCentral distance 71 mmTube insertions for DIN EN pipe up to Ø 25 mm: 4Cable entries up to Ø 13.5 mm: 4For sound insulation walls up to 77 dBDIBt approval Z-19.21-2064ETA-approval: ETA-18/0091
- Product type
Dry lining box
- Features
Halogen-free
- Mounting type
Cavity wall
- Content
5 pc(s)
- Dim
(Ø x D) 74 mm x 70 mm
- Depth
70 mm
- (Ø)
74 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2636976 Kaiser Elektro 9462-94 Dry lining box Halogen-free (Ø x D) 74 mm x 70 mm 5 pc(s)
Description
Electronic-plug HWD 90The HWD 90 electronic box is rated to the wall's fire resistance class (EI30-EI120) and now also F30-B / F60-B. It provides installation space for electronic switching devices, data sockets, cables and terminals. The electronic socket enables the assignment with lines as well as with installation pipes up to M25.
This text is machine translated.
This text is machine translated.
Features
- For fire walls EI30-EI120 and F30-B-F60-B.Later installation is possibleCan also be used as a double socketExtra large connector space for communication and network technologyAdditional room for electronic components (KNX actuators, relays, radio modules, communication technology)Maintains the sound-proofing function of the wallFor lines and pipes up to M25For fire walls EI30-EI120 and F30-B-F60-B.From wall thickness 100 mmFor device applications and electronic componentsTunnel two-chamber box with enclosed separating wall and paper-resistant coverCan be combined with each other and with HWD 90 device connection sockets.
