Buy Kaiser Nienhaus 110020 Tubular motor 60 mm 20 Nm

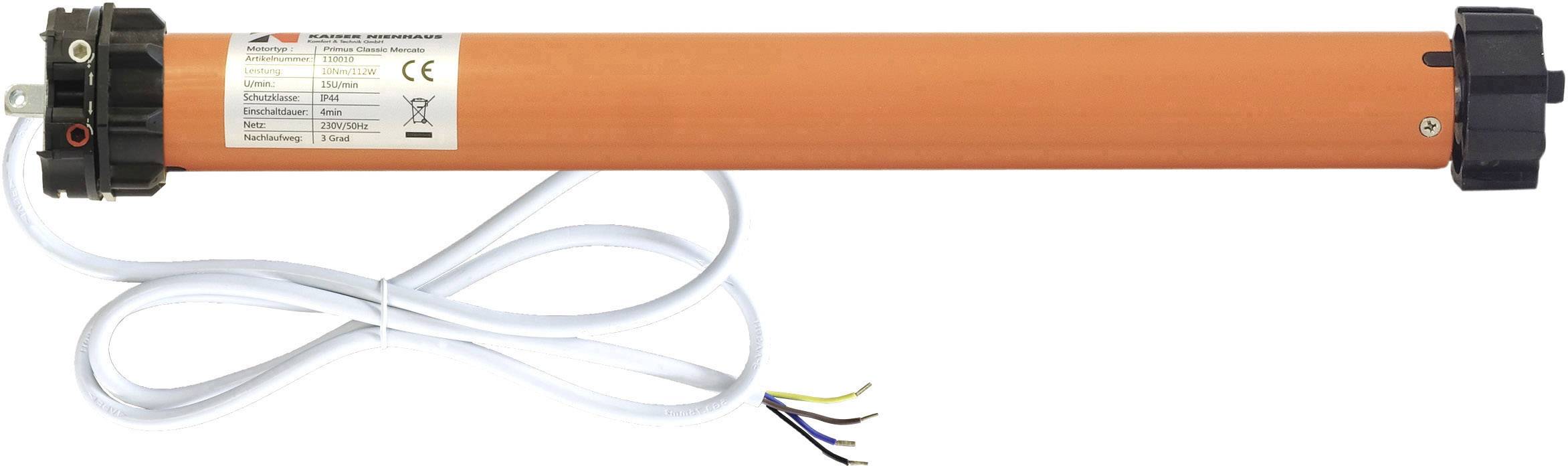

Electric tubular motor, orange, with label and CE marking. Four-core cable connected. Suitable for blinds.

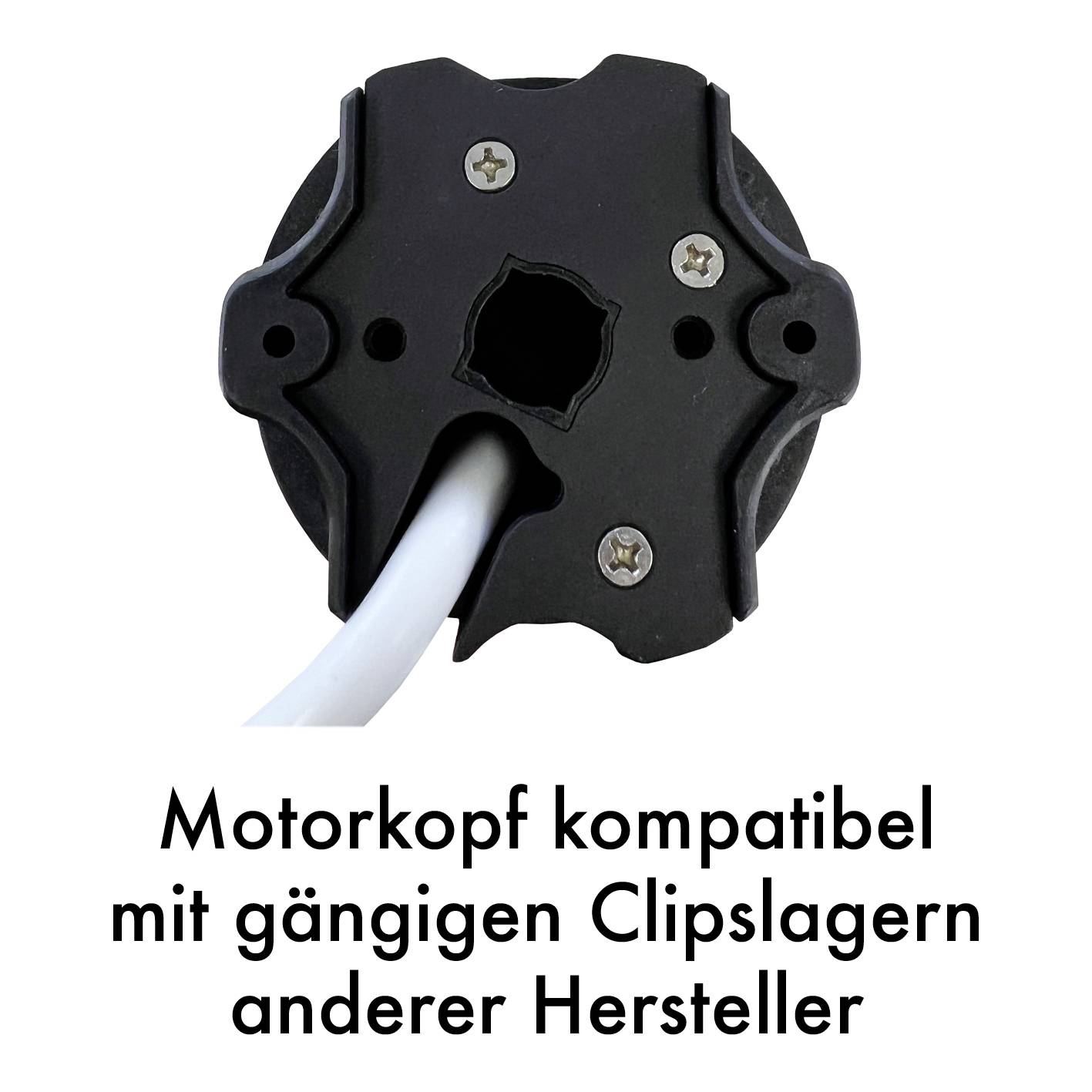

Motor attachment with a hole in the centre and cable, compatible with standard clip bearings from other manufacturers according to the text below.

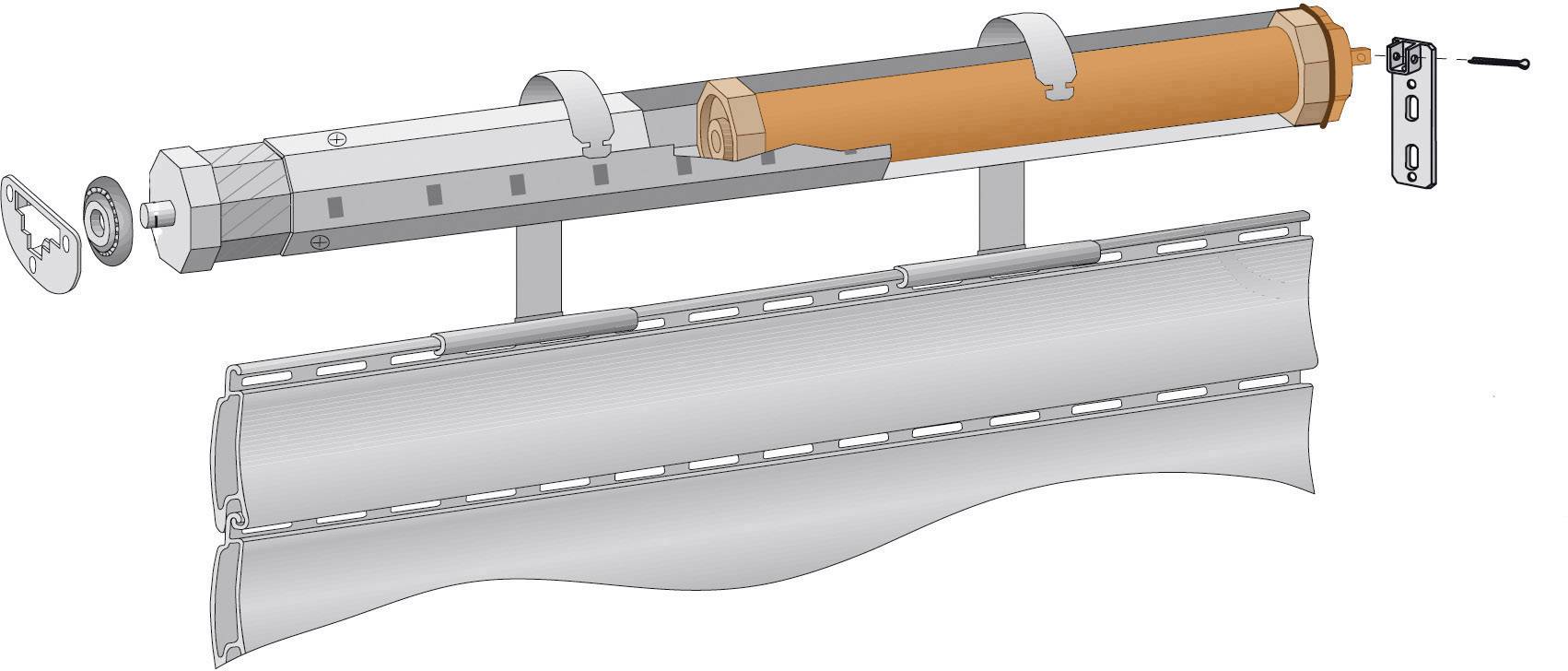

Diagram of an electric roller shutter motor with mounted components. Shows motor in shaft with brackets and mounting accessories.

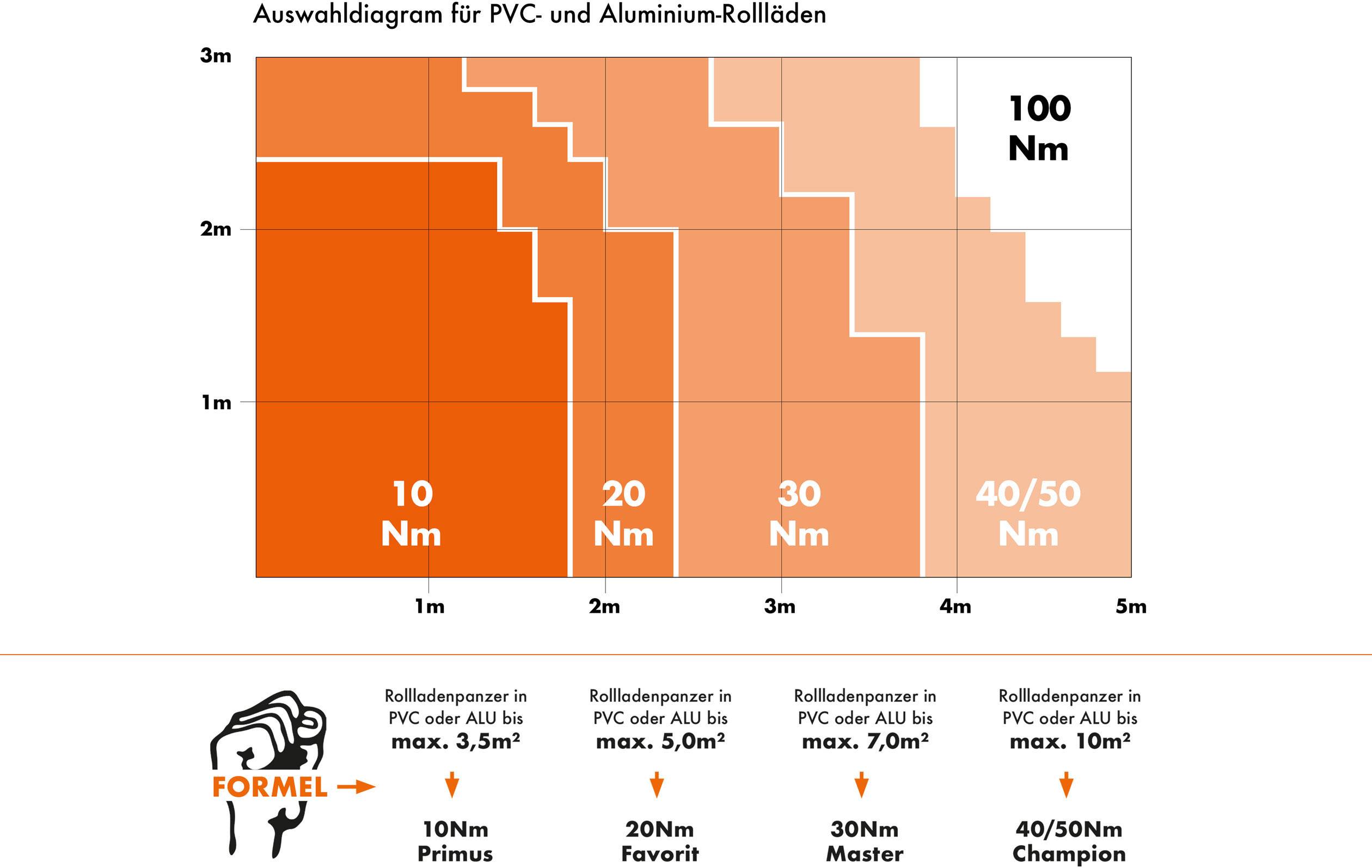

'Diagram for selecting PVC and aluminium roller shutter motors. Shows Nm requirements according to the width and material of the roller shutter.'

1/4

Unavailable

37 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Tubular motor Kaiser Nienhaus 110020 20 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Simple end point setting with threaded spindlesFor PVC/aluminum shutters up to 5 m²With SW60 adapter, motor bearing & adjustment tool

Technical specifications

Product type: Tubular motor

Suitable for shutter axle Ø: 60 mm

Rotational speed: 15 U/min

Length: 590 mm

Max. current consumption: 0.6 A

Limit switched: mechanical

Operating voltage: 230 V

Hub: Not required

Torque: 20 Nm

Lead length: 3 m

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2114971 Kaiser Nienhaus 110020 Tubular motor 60 mm 20 Nm

Description

Classic Mercato motors are characterized by their very precise end point setting via threaded spindles on the motor head as well as by quiet and at the same time high-torque running properties. They are ideal for renovation. The adapter for the SW60 roller shutter shaft as well as the matching motor bearing are included in the delivery and thus the motor can usually be simply inserted into the existing roller shutter shaft and mounted.
