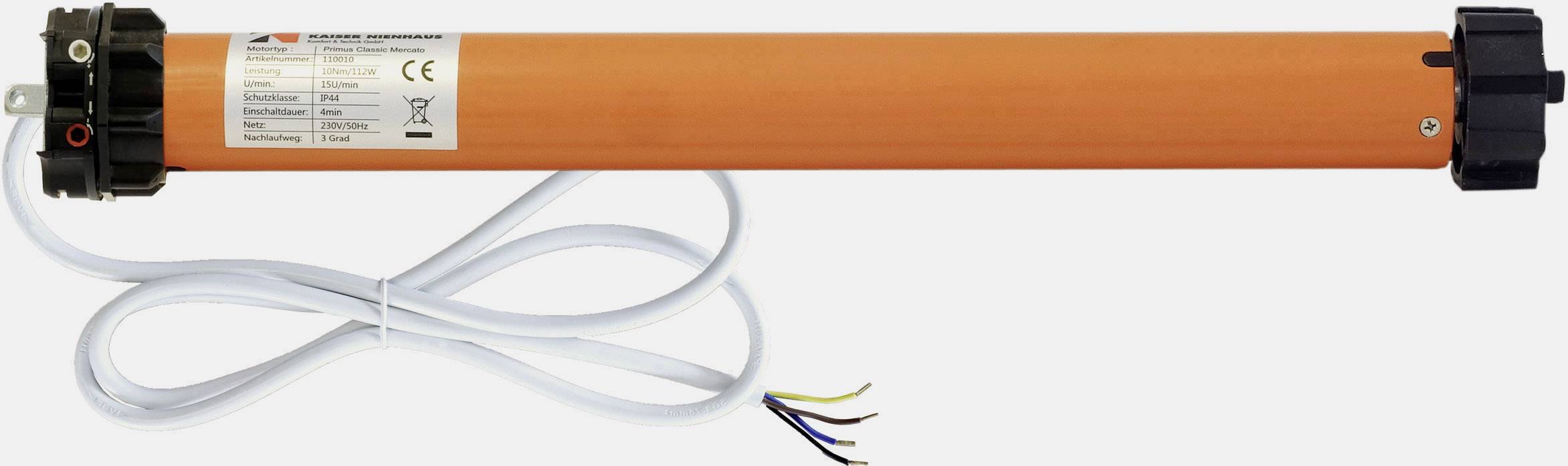

Electric roller shutter motor in cylindrical form, orange, with four cables for electrical connection. Suitable for window roller blinds.

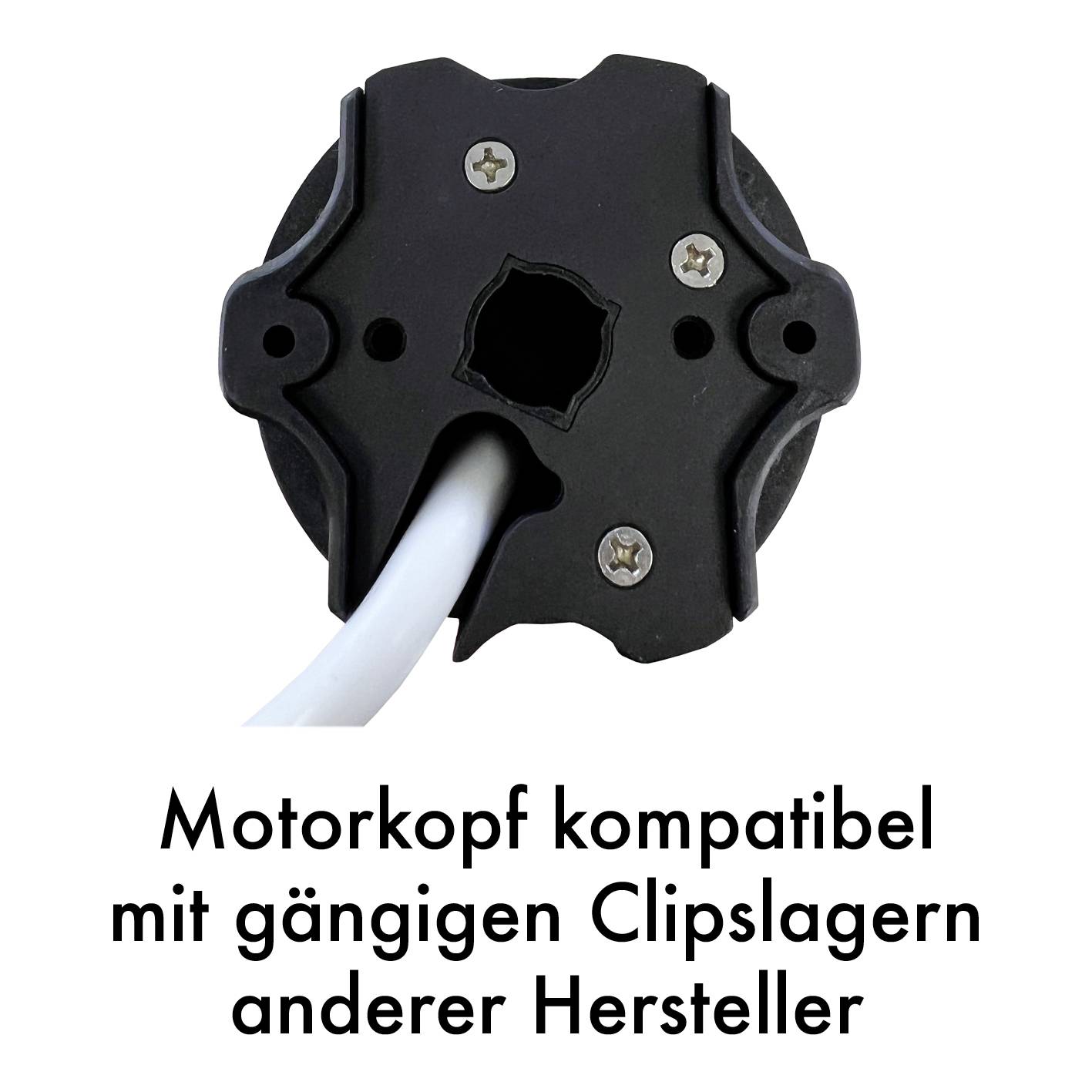

'Motor compatible with clip bearings' shows black component with cable, emphasises compatibility with products from other manufacturers.

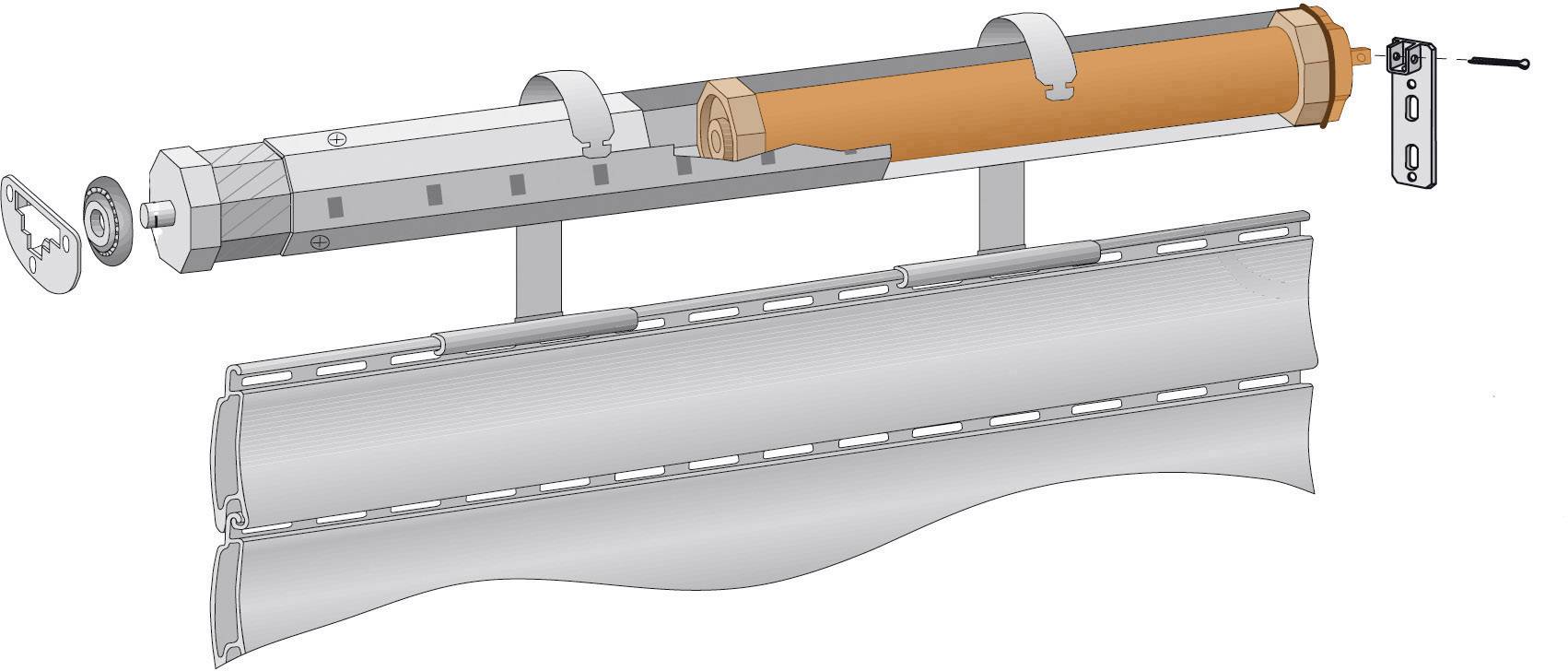

Diagram of a roller shutter motor with housing, shaft, electrical connection, and detailed mounting mechanism.

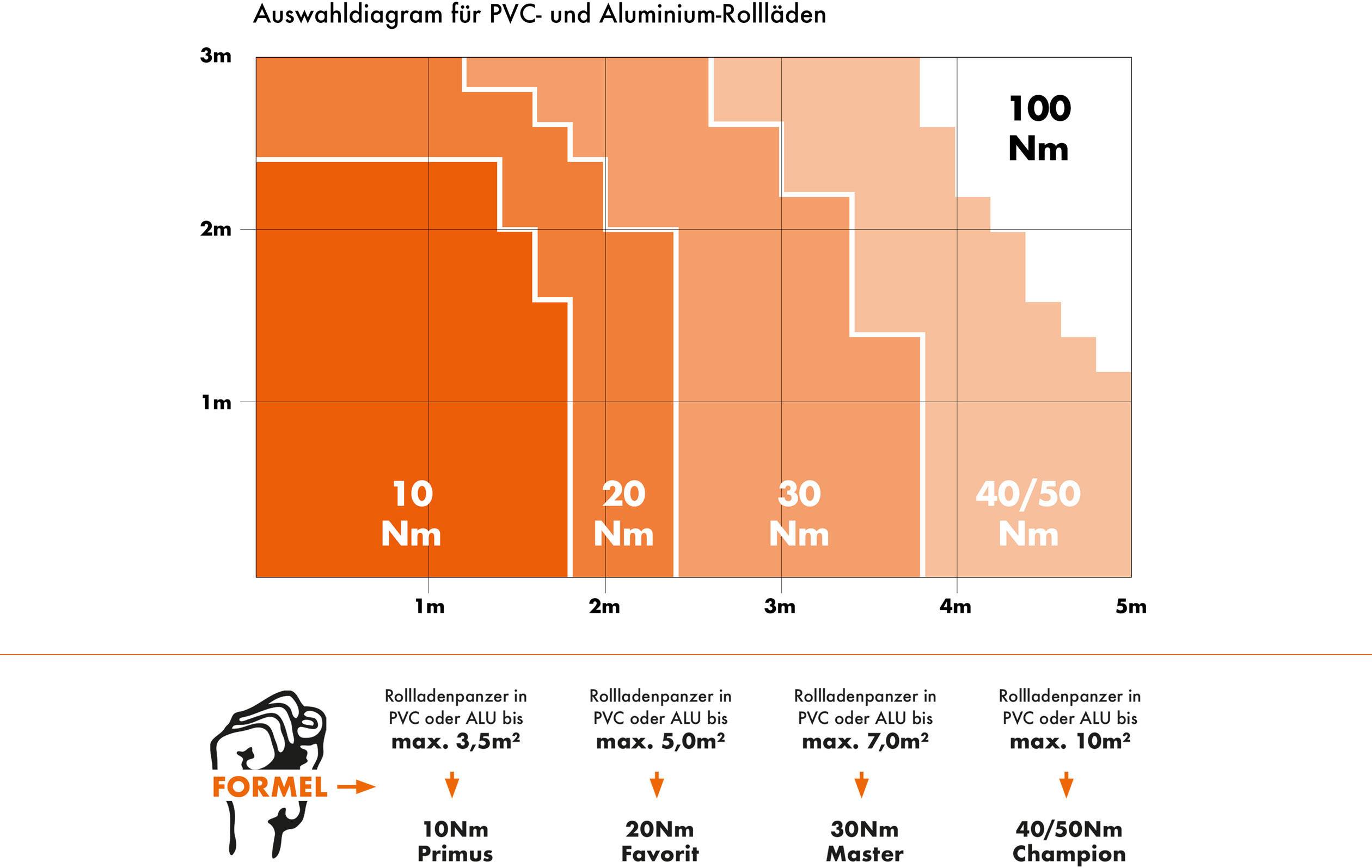

'Diagram shows selection for PVC and aluminium roller shutters based on size: 10 Nm up to 4 m, 20 Nm up to 5 m, 30 Nm up to 6 m, 40/50 Nm up to 8 m.'

1/4

Unavailable

15 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Tubular motor Kaiser Nienhaus 110030 30 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Simple end point setting with threaded spindlesFor PVC/aluminum shutters up to 7 m²With SW60 adapter, motor bearing & adjustment tool

Technical specifications

Product type: Tubular motor

Suitable for shutter axle Ø: 60 mm

Rotational speed: 15 U/min

Length: 600 mm

Max. current consumption: 0.7 A

Limit switched: mechanical

Operating voltage: 230 V

Hub: Not required

Torque: 30 Nm

Lead length: 3 m

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2114972 Kaiser Nienhaus 110030 Tubular motor 60 mm 30 Nm

Description

Classic Mercato motors are characterized by their very precise end point setting via threaded spindles on the motor head as well as by quiet and at the same time high-torque running properties. They are ideal for renovation. The adapter for the SW60 roller shutter shaft as well as the matching motor bearing are included in the delivery and thus the motor can usually be simply inserted into the existing roller shutter shaft and mounted.
