Kaiser Nienhaus 314660 Wind/sun senspr
EAN:
Part number:
Item no:
Highlights & Details

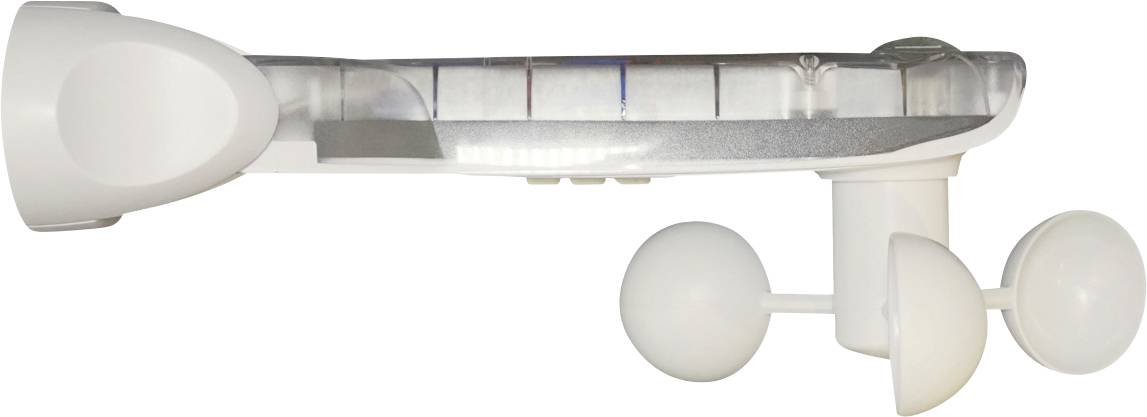

Solvento WS wireless sun/wind sensor
- Sensor holder can be rotated for installation on the roof or on the head
- Measuring approx. 200 x 60 x 100 mm
- Parameter setting from the bottom of the sensor
Technical specifications
- Mains connection 230 V~/50 Hz
- Radio frequency 433.92 MHz
- Transmitted power 10 milliwatts
- Operating temperature -20° - +60°
- Sun measurement range: 20,000 - 80,000 lux
- Measurement range: Wind (threshold value) 10 - 40 kmh
- Product type
Wind/sun senspr
- Factory colour
White
- Operating voltage
230 V / AC
- Width
120 mm
- Height
250 mm
- Depth
90 mm
- Dim
(W x H x D) 120 x 250 x 90 mm
- Hub
Not required
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3312164 Kaiser Nienhaus 314660 Wind/sun senspr
Description
The Solvento radio-controlled solar/wind sensor is connected to the radio-controlled marquee drives of the radio-based Markitik series for sun and wind monitoring. It is mounted on the facade and has the dimensions 200 x 60 x 100 mm. The threshold values for both sensors can be individually adjusted in several steps. Once the wind sensor has tripped, the motor remains locked during the entire wind detection phase so that it cannot be extended again by hand-held transmitter or by a sun command. The sun sensor triggers a complete exit after 5 minutes of permanently exceeding the set threshold value. A sensor can be used to control several marquee drives that are located close to one another at the same time. The sensor requires a 230 V power connection. Radio frequency 433 MHz.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x WS 433 wireless wind/sun sensor with mains connection.
