Kaiser Nienhaus 336950 336950 Limit switch
EAN:
Part number:
Item no:
Highlights & Details
Limit monitor sun/Wind including sensor
- Simple threshold setting directly on the limit switch
- Wind and solar monitoring in a practical combination device
- Priority of the wind command for an optimum protection of your system
Technical specifications
- Parameter setting: potentiometer on the limit switch
- Twilight setting range: approx. 1 - 70 Lux
- Setting range Sun: approx. 20000 - 100000 Lux
- Setting range Wind: approx. 10 - 70 km/h
- Motor running time: adjustable
- Input: including self-latching
- Product type
Limit switch
- Features
Incl. wind sensor
Incl. daylight sensor
- Operating voltage
230 V
- Mounting type
DIN rail
- Hub
Not required
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1487592 Kaiser Nienhaus 336950 336950 Limit switch
Description

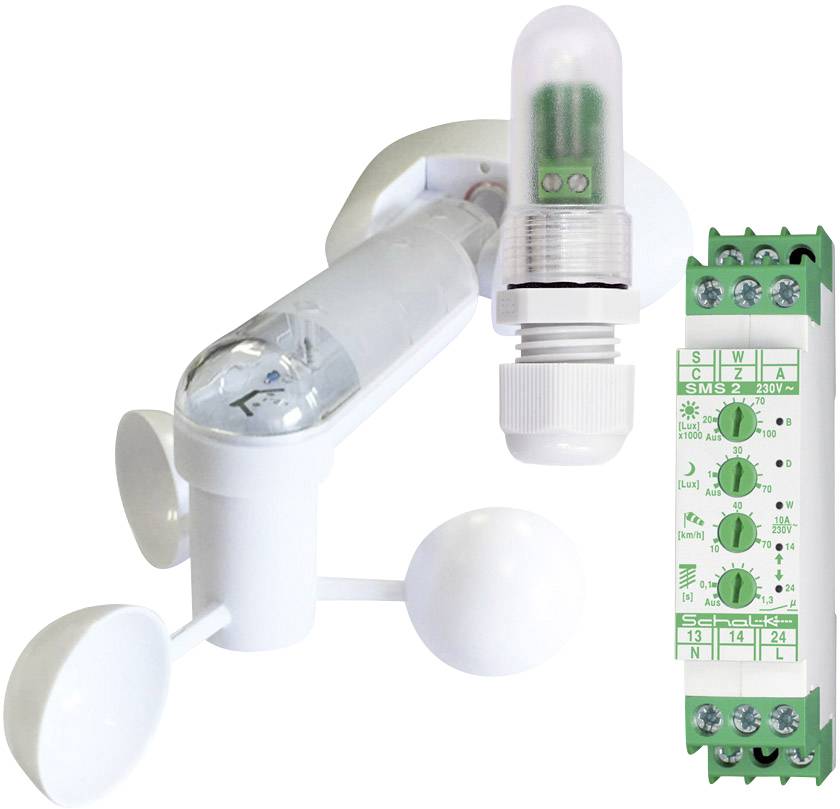

Light and wind sensor included limit switch for the application on the DIN rail. The sensitivity settings can very easily on the device. Ideal as a combination device for the awnings or blinds. Including double pushbutton for setting and control.
This text is machine translated.
This text is machine translated.
Features
- Sensor included limit switch
- Simple setting on the limit switch
- Combination device for light & Wind
- Can be integrated into group controls
- Comfortable latching for manual operation
- Sun function can be activated via buttons (de).
Scope of delivery
- Limit switch for the DIN rail
- Combination sensor sun/Wind
- Fixings
- User manual.
