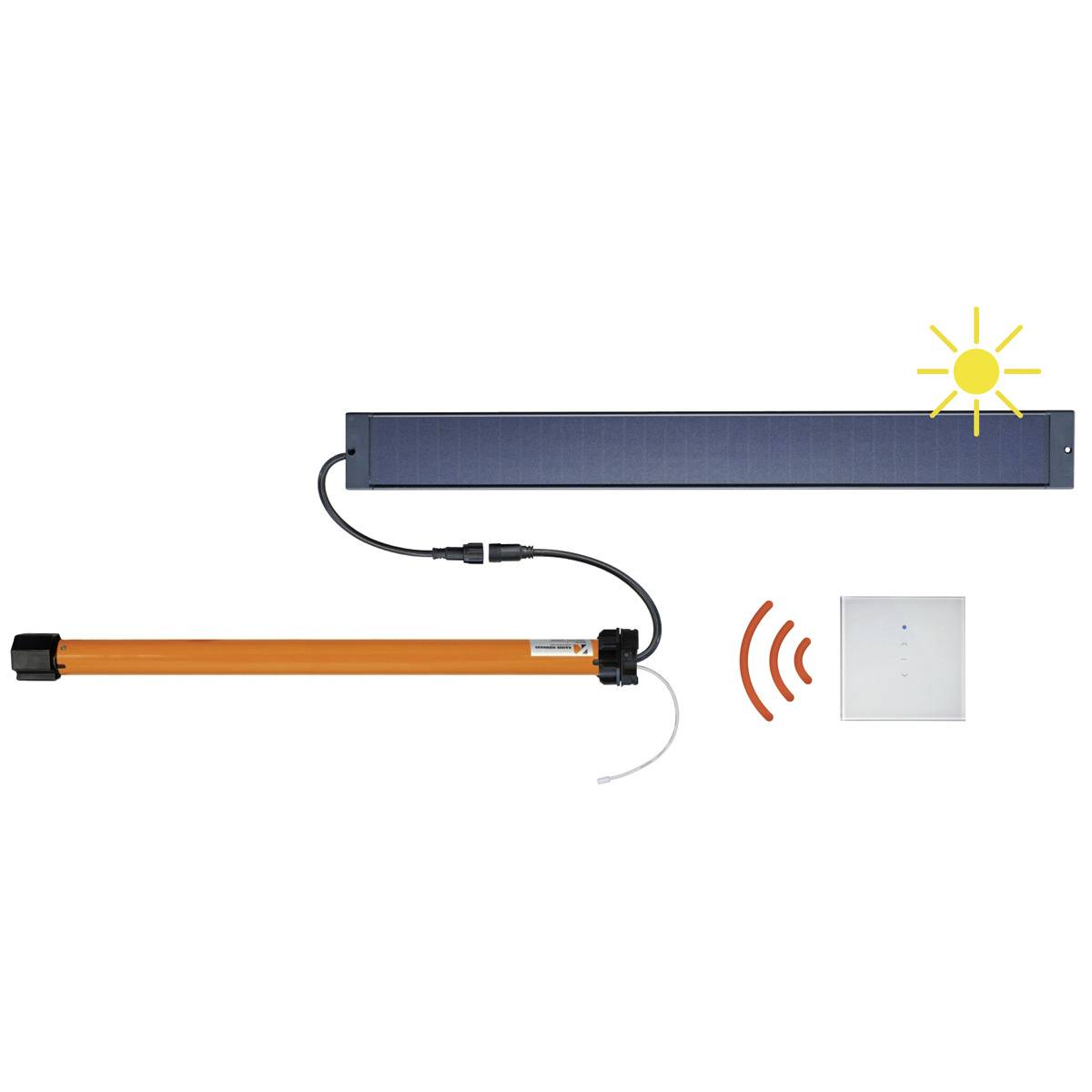

Kaiser Nienhaus 500000 Solar panel

The solar module is perfectly suitable for supplying power to the drives, if a cabled power supply is not possible. The module can be connected either to drives of the Easyline series or to the separate battery module (Art.-No. 100980) can be connected. Under ideal conditions, the solar cells can provide a power of 5 W to buffer the connected battery. The module is extremely flat and inconspicuous with a height of 10 mm. The dimensions are 560 mm x 60 mm and the module is fixed via two 3 mm mounting holes on the sides. Alternatively, the two included brackets can be used to tilt the module by up to 30° and thus align Ideal. The solar module is not suitable for installation in (semi-shade) or with north direction. The module is delivered with a waterproof plug connector at the voltage output at the factory. The cable has a length of 20 cm and it is supplied with each module a cable extension of 3 m. The solar panel is assigned to protection class IP 55. Colour, black
