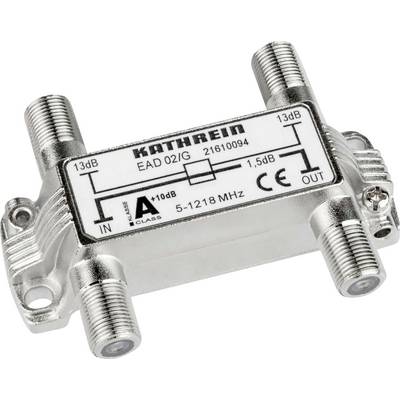

Kathrein EAD 02/G Cable TV distributor 5 - 1218 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
4% = € 0.31
€ 7.24
5
6% = € 0.45
€ 7.10
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Kathrein EAD 02/G. Cable TV distributor
Highlights & Details
- Impedance: 75 Ω
- Frequency range: 5-1218 MHz (i.e. return and UHF-compatible) solid casing made of tin-plated zinc die-cast
- Complies with EN 60728-11 and EN 50083-2
- Connections: F-connectors
- Separator capacitors at inputs and outputs
- Class A (+10 dB) in accordance with DIN 50083-2 Vodafone/KDG approval
- For indoor mounting
- This text is machine translated.
Technical specifications
- Product type
Cable TV distributor
- Frequency range
5 - 1218 MHz
- SAT damping
13 dB
- Dim
(L x W x H) 23.5 x 73.6 x 52.5 mm
- No. of inputs
1 x
- Width
73.6 mm
- Height
52.5 mm
- Length
23.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2308346 Kathrein EAD 02/G Cable TV distributor 5 - 1218 MHz
User & Safety Instructions
User & Safety Instructions 2308346 Kathrein EAD 02/G Cable TV distributor 5 - 1218 MHz
Description
Features
- 2fach-F tap 12.5 dB
- 5-1218 MHz
- F connector
- Parting capacitors at inputs and outputs
- Shielding class A according to CENELEC EN 50083-2
- Vodafone/KGD enable
