Kathrein EAX 2912 SAT splitter 950 -2150 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Highlights & Details
Kathrein EAX 2912 SAT-distributor
- Double splitter and dual splitter for the Sat IF distribution system (8 x Sat IF)
- For signal distribution in very large Sat IF systems with 9er multi-switch cascades
- For indoor mounting

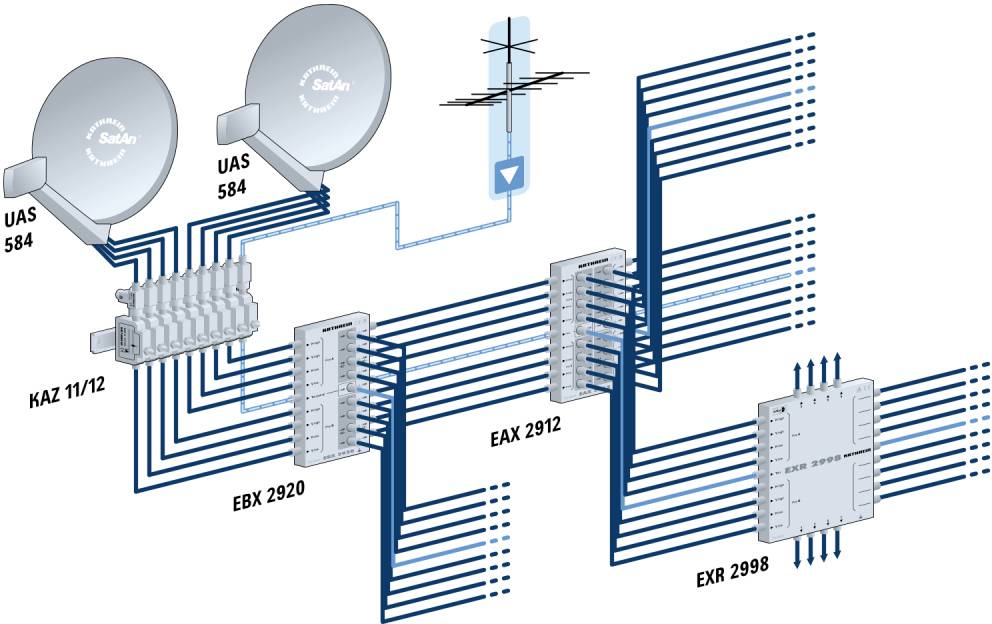

- Double branch for connecting two 9er multi-switch cascades to a main line
- Nine double branch connections (8 x Sat-IF and 1 x terr. Range) in a housing Remote feed-compatible via input - main output (8 x Sat-IF); separating capacitor at the branch outputs
- Cascadable with further EAX 2912 or EBX 2920
- This text is machine translated.
Technical specifications
- Product type
SAT splitter
- Frequency range
950 -2150 MHz
- No. of inputs
1 x
- SAT damping
12 dB
- Dim
(L x W x H) 54.5 x 112 x 228 mm
- Length
54.5 mm
- Height
228 mm
- Width
112 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2308360 Kathrein EAX 2912 SAT splitter 950 -2150 MHz
Description
Features
- Sat IF splitter
- 8 x 950-2150 MHz
- 9 x 2fach splitter 12 dB in one casing
- F-connections
- Cascadable with EXR 9er multi-switch system
