Kathrein EBC 08/G Cable TV splitter 8-way 5 - 1218 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
18 Piece(s)
Sales and shipping:
Number
Total (€ 23.52 / piece)
€
Highlights & Details

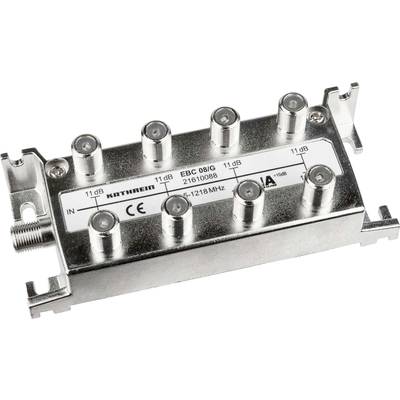

Kathrein EBC 08/G Cable TV splitter
- Impedance: 75 Ω
- Frequency range: 5-1218 MHz (i.e. Reverse and UHF-compatible) separator capacitors at inputs and outputs; withstand voltage 24 V DC connections: F-connectors
- Connection for equipotential bonding
- Complies with EN 60728-11 and EN 50083-2
- For indoor mounting
- Class A (+10 dB) in accordance with DIN 50083-2
- Vodafone/KDG Release
- This text is machine translated.
Technical specifications
- Product type
Cable TV splitter
- Participants
8
- Frequency range
5 - 1218 MHz
- Type
8-way
- SAT damping
11 dB
- Dim
(L x W x H) 25 x 52 x 50 mm
- Weight
0.035 kg
- No. of inputs
1 x
- Cable attenuation
11 dB
- Width
52 mm
- Height
50 mm
- Length
25 mm
- Shielding rating
10 dB
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2308365 Kathrein EBC 08/G Cable TV splitter 8-way 5 - 1218 MHz
Description
Features
- 8fach-distributor
- 11 dB
- 5-1218 MHz
- F-connector
- Parting capacitors at inputs and outputs
- Shielding class A according to CENELEC EN 50083-2
- Vodafone-/KGD-release.
