Kathrein EBX 2920 SAT multiswitch
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 126.04 / piece)
€
Highlights & Details

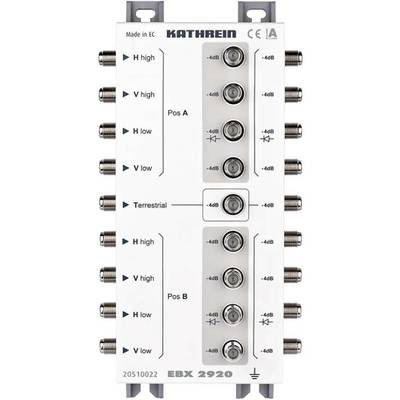

Kathrein EBX 2920 multi-switch
- Double splitter and dual splitter for the Sat IF distribution system (8 x Sat IF)

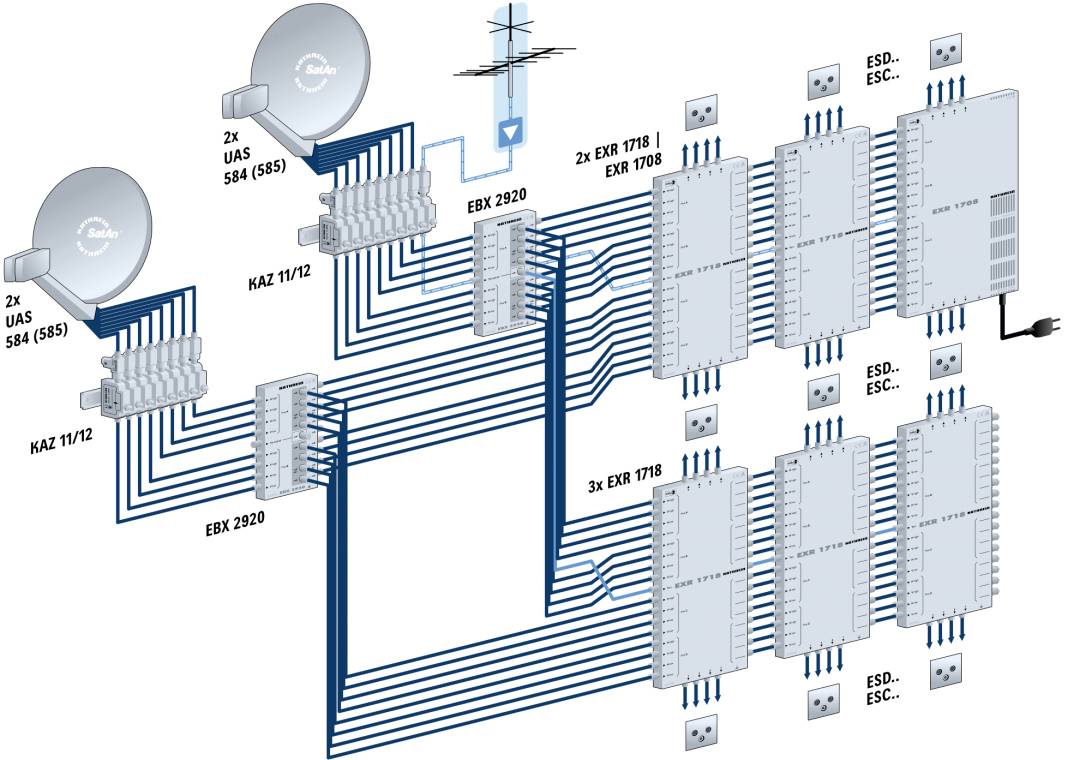

- For signal distribution in very large Sat IF systems with 9er multi-switch cascades
- For indoor mounting
- Dual distributor for distributing the main lines to two 9er multi-switch cascades
- Nine dual distributors (8 x Sat-IF and 1 x terr. Range) in a housing Suitable for remote supply via input - main output (8 x Sat-ZF) and via distribution output horizontal low (diode decoupling to main output); separator capacitors at the other distribution outputs
- Cascadable with further EBX 2920 or EAX 2912
- This text is machine translated.
Technical specifications
- Outputs (multiswitch)
8 (8 SAT/0 terrestrial)
- Min. frequency
5 MHz
- Max. frequency
2150 MHz
- SAT damping
4 dB
- Width
112 mm
- Height
228 mm
- Depth
54.5 mm
- Product type
SAT multiswitch
Documents & Downloads
Datasheet
Datasheet 2308366 Kathrein EBX 2920 SAT multiswitch
User & Safety Instructions
User & Safety Instructions 2308366 Kathrein EBX 2920 SAT multiswitch
Description
Features
- Sat-ZF splitter
- 5-862 and 8 x 950-2150 MHz
- 9 x 2fach splitter 12 dB in one go.
- F-connections
- Can be cascaded with EXR 9er multi-switch system.
