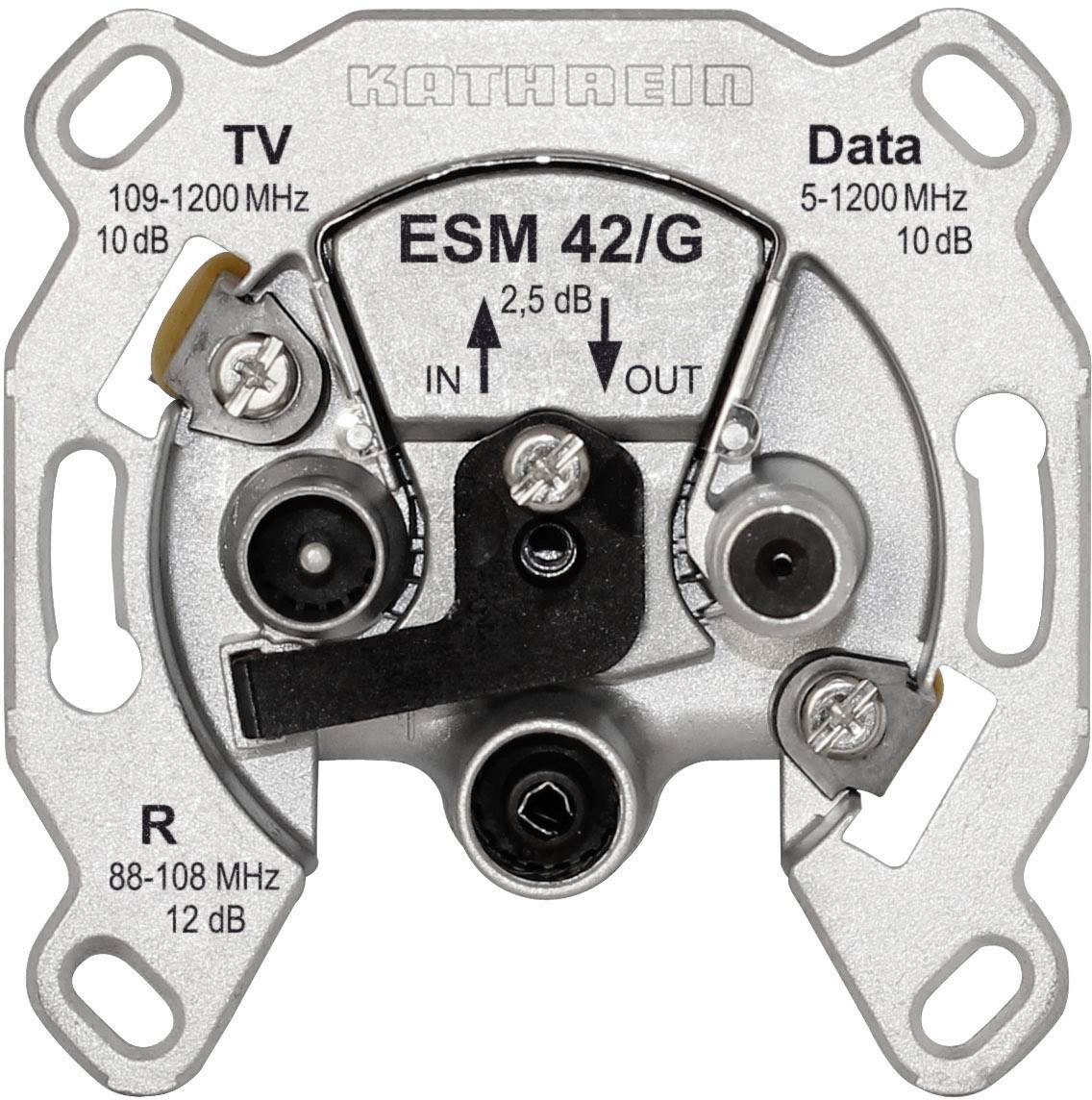

Kathrein ESM 42/G Antenna socket Data, TV, FM Flush mount Non-terminated
EAN:
Part number:
Item no:
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Technical specifications
- Type
Non-terminated
- Product type
Antenna socket
- Suitable for
Data
TV
FM
- Mounting type
Flush mount
- Factory colour
Silver
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1507176 Kathrein ESM 42/G Antenna socket Data, TV, FM Flush mount Non-terminated
Description
Directional coupler socket for Durchschleifsysteme, Connection attenuation: ESM 42/G: 10 dB
This text is machine translated.
This text is machine translated.
Features
- Meet: EN 60728-11 and EN 50083-2
- For interactive CATV/HFC nets
- Very high decoupling between modem connection and TV/radio connection prevents interference of the TV/radio reception by modem
- Ingress Noise blocking function prevents the radiation of unwanted interference signals via the subscriber terminals
- Selective signal distribution on TV and radio connection
- Integrated solution without attachment filter, a high protection of the system against subsequent manipulation by the subscriber.
- Stable pressure die-cast housing
- With screw and claw fixing, suitable for UP sockets with a diameter of 55-65mm
- Can be combined with almost all installation programs
