Kathrein EXD 1524 SAT unicable cascade multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants:
EAN:
Part number:
Item no:
Number
Total (€ 281.51 / piece)
€ 281.51
plus VAT.
14-day return policy included
Highlights & Details

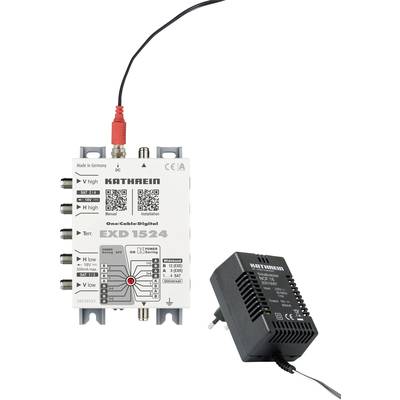

Kathrein EXD1524 single-cable multi-switch
- Up to eight multi-switch cascade
- For indoor installation
- User band frequencies compatible with earlier Kathrein Models
- QR Code for examples of installation and instructions for use
Technical specifications
- Product type
SAT unicable cascade multiswitch
- Inputs (multiswitches)
5 (4 SAT/1 terrestrial)
- Participants
24
- Min. frequency
5 MHz
- Max. frequency
2350 MHz
- SAT damping
94 dB
- Terrestrial damping
11 dB
- Width
148 mm
- Height
44 mm
- Depth
102 mm
- Weight
0.51
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1562301 Kathrein EXD 1524 SAT unicable cascade multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants:
Description
Configurable Unicable multi-switch for up to 24 (2 x 12) User bands and external power supply for the LNB supply
This text is machine translated.
This text is machine translated.
Features
- Cascadable Twin Multi-switch: for both the outputs are different configurations / number of user tapes by rotary switch selectable
- Multi-feed simply by switching the outputs together with the distributor EBC110
- Single-command set EN 50494 and EN 50607 new, advanced command set (SCD2) are supported
- Fit for the future thanks to Wideband Technology (broadband inputs); with wide-band LNBs are up to four satellite positions are possible
- The integrated AGC (Automatic Gain Control) ensures a constant output level of the Sat IF signals and for more reserve in the distribution
- Multi-tuner devices, such as UFS 926, with a variety of user bands are supplied on a low-guide
- PIN code: protection of the participants frequency before accessing of another participant. A flat-wide installation is thus possible
- Through the power-saving concept uses the multi-switch no power from the Ncf 18, if no receiver is switched on
- LED as an installation help and troubleshooting
- "Kathrein Power-saving" with rotary switch selector and can be switched off
Scope of delivery
- Multiswitch
