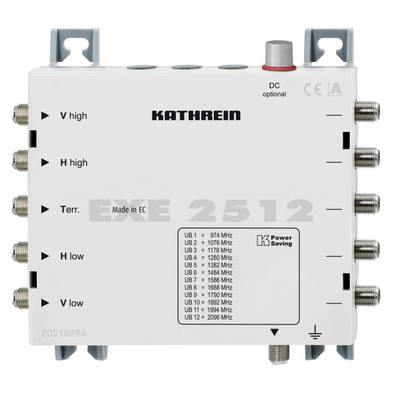

Kathrein EXE 2512 SAT unicable cascade multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants:
EAN:
Part number:
Item no:
Number
Total (€ 335.29 / piece)
€ 335.29
plus VAT.
14-day return policy included
Kathrein EXE 2512 single-cable multi-switch
Technical specifications
- Product type
SAT unicable cascade multiswitch
- Type (active/passive)
Active
- Inputs (multiswitches)
5 (4 SAT/1 terrestrial)
- Participants
12
- Min. frequency
5 MHz
- Max. frequency
2150 MHz
- Features
Standby mode
- Width
160 mm
- Height
148 mm
- Depth
43 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1507195 Kathrein EXE 2512 SAT unicable cascade multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants:
Description
Continuity multi-switch to plant expansion to a single-cable connection for twelve receiver
Kathrein power-saving: As soon as no receiver more active,, a signal is effected to the highend multi-switch via the master" vertical low", then the voltage supply for the LNB switches off
Optional supply with Ncf 18 is possible. Through the power-saving concept uses the multi-switch no power from the Ncf 18, if no receiver is switched on
This text is machine translated.
Kathrein power-saving: As soon as no receiver more active,, a signal is effected to the highend multi-switch via the master" vertical low", then the voltage supply for the LNB switches off
Optional supply with Ncf 18 is possible. Through the power-saving concept uses the multi-switch no power from the Ncf 18, if no receiver is switched on
This text is machine translated.
Features
- Kaskadierfahige Unicable multi-switch for the distribution of SAT-ZF signals (four Sat-Ebenen; including HDTV) and terrestrial signals via a cable for up to 12 Receiver
- No restriction in the program variety - it is a complete program offer a satellite transfer
- The selected transponder is from the multi-switch on a fixed frequency band (User), controlled from receiver with a DiSEqC™ command set according to EN 50494
- The multi-switches support the extended single command SET SCD2 according to EN 50607
- The Advanced Command Set EN 50607 can be addressed with the standard all user bands EN 50494 only user band 1-8
- Reception of terrestrial range even when the satellite receiver is possible
- Each receiver is a participant frequency (band) permanently assigned to user (one twin receiver requires two subscriber frequencies)
- PIN code: protection of the participants frequency before accessing of another participant. A flat-wide installation is thus possible
- The integrated AGC (Automatic Gain Control) ensures a constant output level of the Sat IF signals
- Single-cable multi-switch EXE 2512 and more continuity multi-switch, such as EXE 259, EXR2554, EXR 2558 and EXR2542, can be combined as required
- It can be cascaded up to eight multi-switch
- For indoor installation
Scope of delivery
- Multiswitch
