Kathrein KAZ 10 Surge protection
EAN:
Part number:
Item no:
Highlights & Details

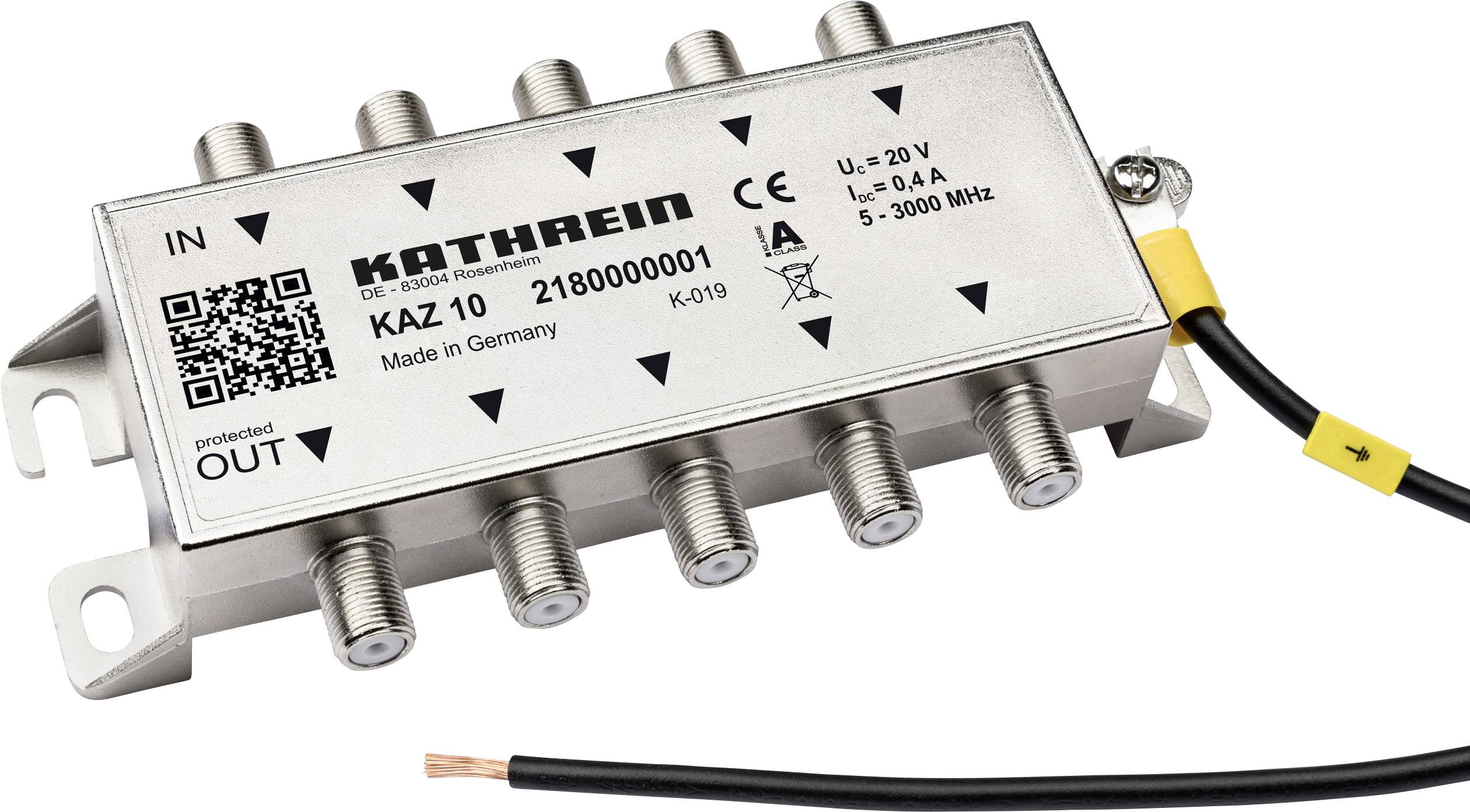

Kathrein kaz 10 surge protection
- 5-way surge protection for DVB-S/S2/T/T2/C for digital and analog signals/Overvoltage category 2
- Use before antenna splitter and multi-switch (4 x satellite & 1 x terrestrial antenna signal)
- As close as possible to the protected object install
- This text is machine translated.
Technical specifications
- Content
1 pc(s)
- Product type
Surge protection
- Factory colour
Silver
- Dim
(L x W x H) 71.5 x 145 x 31.5 mm
- Width
145 mm
- Height
31.5 mm
- Length
71.5 mm
- UKCA
yes
Description
Features
- Reduced overvoltage between inner and outer conductor
- Passage for 22-kHz, DiSEqCTM signals and return-channel compatible
- Meets requirements of IEC61643-21 + A1 + A2 2012 / DIN EN61643-21 2013 / DIN EN 50083-2 Class A
- Installation in buildings; zinc die-cast housing; ground connection on the housing up to 6 mm2; Impedance: 75 Ohm
Scope of delivery
- Kathrein kaz 10 surge protection.
