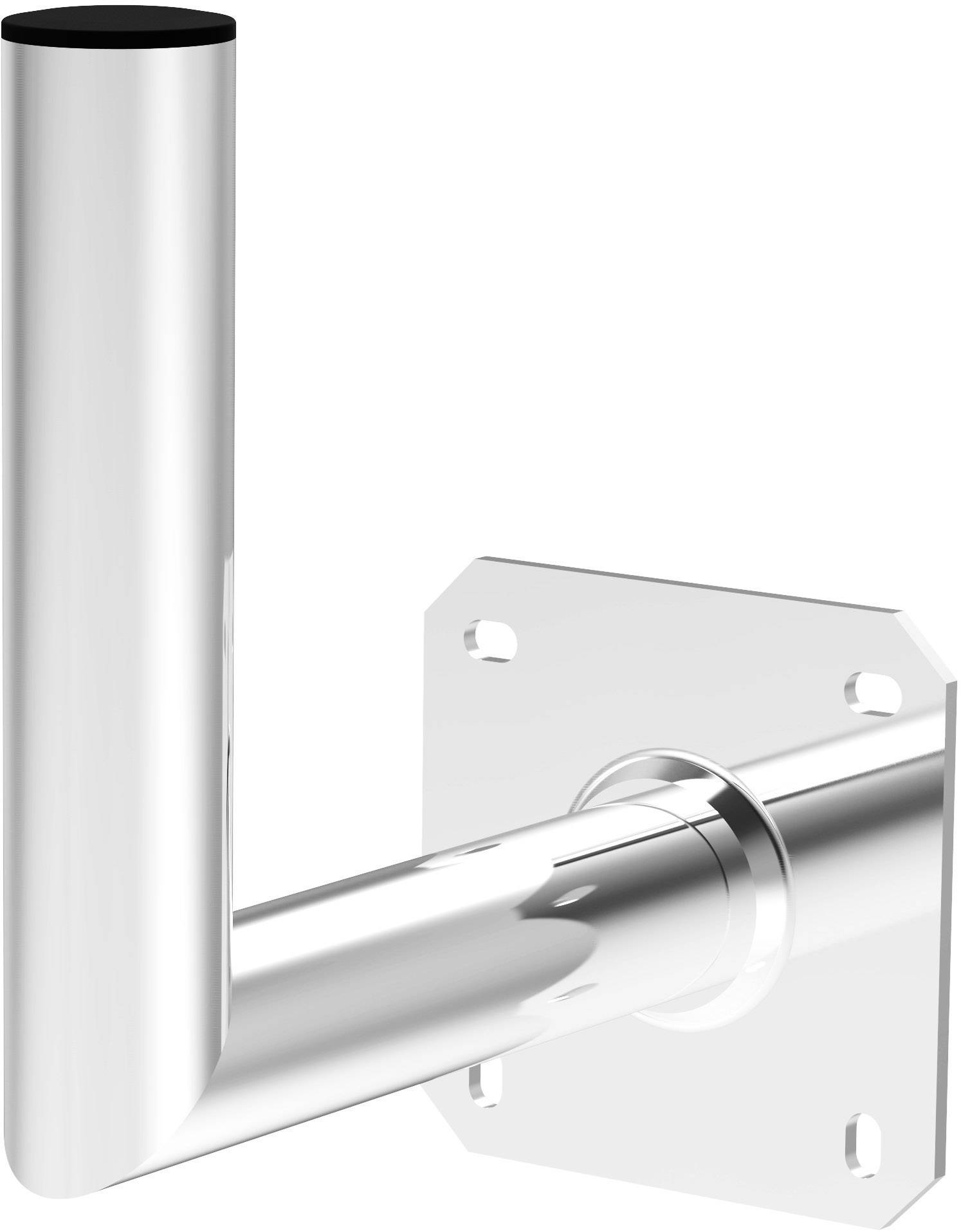

Kathrein KEZ 2525 SAT wall mount Projection distance: 25 cm Aluminium
EAN:
Part number:
Item no:
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
KATHREIN ALU-WALL BRACKET KEZ 2525
Highlights & Details
- Suitable for KEA 650, KEA 750 and KEA 850
- Quick and easy to mount on the wall
- Robust and durable thanks to high-quality aluminum
- This text is machine translated.
Technical specifications
- Adjustment range of the antenna elevation: 5 - 45°
- Adjustment range of the antenna Azimuth: +/-61° (KEA 650), +/- 50° (KEA 750), +/- 53° (KEA 850)
- Clamping height for mast clamp 200 mm
- Distance from wall: 250 mm
- Total height: 250 mm
- Insert size 150 x 150 mm
- Hole spacing/Ø 110 x 110/10 mm
- Pipe-Ø (diameter) 50 mm
- Max. Forces at the attachment points (tension/pressure KEA 650/750/850): 500/600/700 N.
- Max. Forces at the attachment points (shear KEA 650/750/850): 380/430/590 N.
- Product type
SAT wall mount
- Material
Aluminium
- Fitting site
Wall
- Projection distance
25 cm
- Height
250 mm
- (Ø)
50 mm
- Weight
750 g
- Factory colour
Aluminium
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1970038 Kathrein KEZ 2525 SAT wall mount Projection distance: 25 cm Aluminium
Description
Scope of delivery
- Aluminum wall bracket KEZ 2525
