Kathrein LCD 120A+/250m SAT Cable Coaxial 250.00 m triple shielding 130 dB 75 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (1 m = € 1.26)
€ 315.13
plus VAT.
14-day return policy included
Highlights & Details

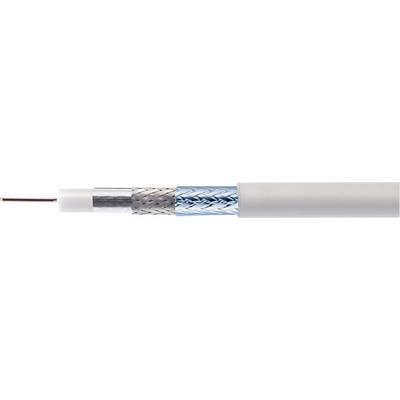

Kathrein LCD 120A+/250m coaxial cable
- Impedance: 75 Ω
- With metre marking
- Inner conductor plain copper; outer conductor 3-way shielding with tin-plated copper braid and two foil layers
- Low damping over long connecting distances
- For domestic installation
- Lead-free, silicone-free; UV-resistant; non-halogen-free Construction product regulation EU 305/2011 (EN 50575) Fire class: ECA very high shielding rating type. 130 dB and high protection against interference (LTE)
- Complies with EN 50117 / shielding class A++
- Approved by KDG/Vodafone Kabel Deutschland dibkom-certified material

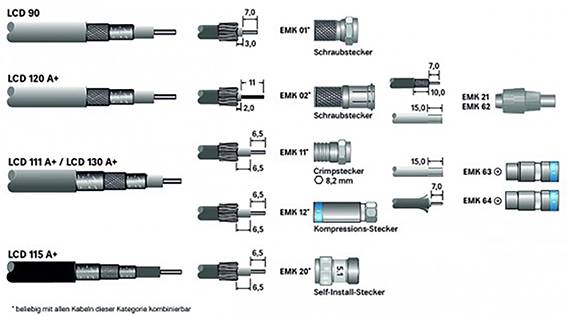

- Suitable plug: EMK 01, EMK 02, EMK 11, EMK 12, EMK 20, EMK 21, EMK 61, EMK 63, EMK 64
- This text is machine translated.
Technical specifications
- Cable length
250.00 m
- Version
Cable
- Insulation diameter
4.6 mm
- Cable features
triple shielding
- Shield rating greater than
130 dB
- Impedance
75 Ω
- Outside Ø
6.8 mm
- Dim
- Shielding
Braid shielding/shielding film
- Bend radius
about 34mm
- Max. frequency
3000 MHz
- Halogen-free
No
- Cable use
SAT
- Cable design
Round
- Product type
SAT Cable
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type A
Open cable ends
- Type B
Open cable ends
- Cable type
Coaxial
Documents & Downloads
Datasheet
Datasheet 2308368 Kathrein LCD 120A+/250m SAT Cable Coaxial 250.00 m triple shielding 130 dB 75 Ω
Conformity certificate
Conformity certificate 2308368 Kathrein LCD 120A+/250m SAT Cable Coaxial 250.00 m triple shielding 130 dB 75 Ω
Description
Features
- Coaxial Cables
- BauPVO EN 50575 - ECA
- 250 m roll-off box
- 6.8 mm
- PVC white
- Shielding measure type. 130 dB
- Class A++
- Construction: 1.02 Cu/4.8 Al/CuSn/Al, KDG/Vodafone release.
