Kathrein LCD 130A+/100m SAT Cable Coaxial 100.00 m triple shielding 130 dB 75 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (1 m = € 1.51)
€ 151.25
plus VAT.
14-day return policy included
Kathrein LCD 130A+/100m coaxial cable
Highlights & Details
- Impedance: 75 Ω
- With metre marking
- Complies with EN 50117 / shielding class A++
- For building installation, escape routes, hospitals, kindergartens, etc. Halogen-free, Lead-free, without silicone, UV-resistant
- Inner conductor plain copper; outer conductor 3-way shielding with tin-plated copper braid and two foil layers
- Very high shielding rating type. 110 dB and high protection against interference (LTE)
- Construction Products Regulation EU 305/2011 (EN 50575) Fire class: B2ca S1A d0 A1
- Very low damping over long connection distances due to the large diameter of the inner conductor of 1.13 mm
- Approved by KDG/Vodafone Kabel Deutschland dibkom-certified material

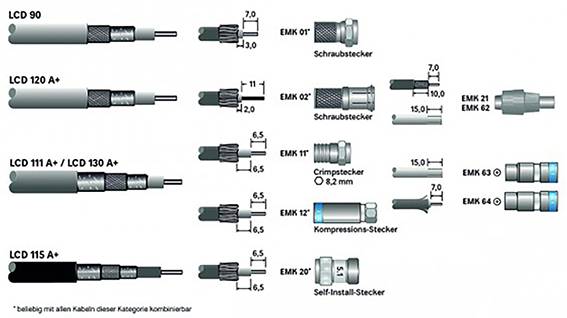

- Suitable plug: EMK 01, EMK 02, EMK 11, EMK 12, EMK 20, EMK 21, EMK 61, EMK 63, EMK 64
- This text is machine translated.
Technical specifications
- Shielding: A++
- Cable length
100.00 m
- Version
Cable
- Insulation diameter
4.8 mm
- Cable features
triple shielding
- Shield rating greater than
130 dB
- Impedance
75 Ω
- Outside Ø
6.9 mm
- Shielding
Braid shielding/shielding film
- Bend radius
about 35mm
- Max. frequency
3000 MHz
- Halogen-free
Yes
- Cable use
SAT
- Cable design
Round
- Product type
SAT Cable
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type A
Open cable ends
- Type B
Open cable ends
- Cable type
Coaxial
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2308369 Kathrein LCD 130A+/100m SAT Cable Coaxial 100.00 m triple shielding 130 dB 75 Ω
Description
Features
- Coaxial cable
- BauPVO EN 50575 - B2ca s1a d0 a1
- 100 m one-way coil
- 6.9 mm
- PVC white
- Shielding measure type. 130 dB
- Class A+
- Construction: 1.13 Cu/4.8 Al/CuSn/Al, KDG/Vodafone release.
