Kathrein ZAS 63 SAT wall mount Projection distance: 50 cm
EAN:
Part number:
Item no:
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
Only 2 Piece(s) available

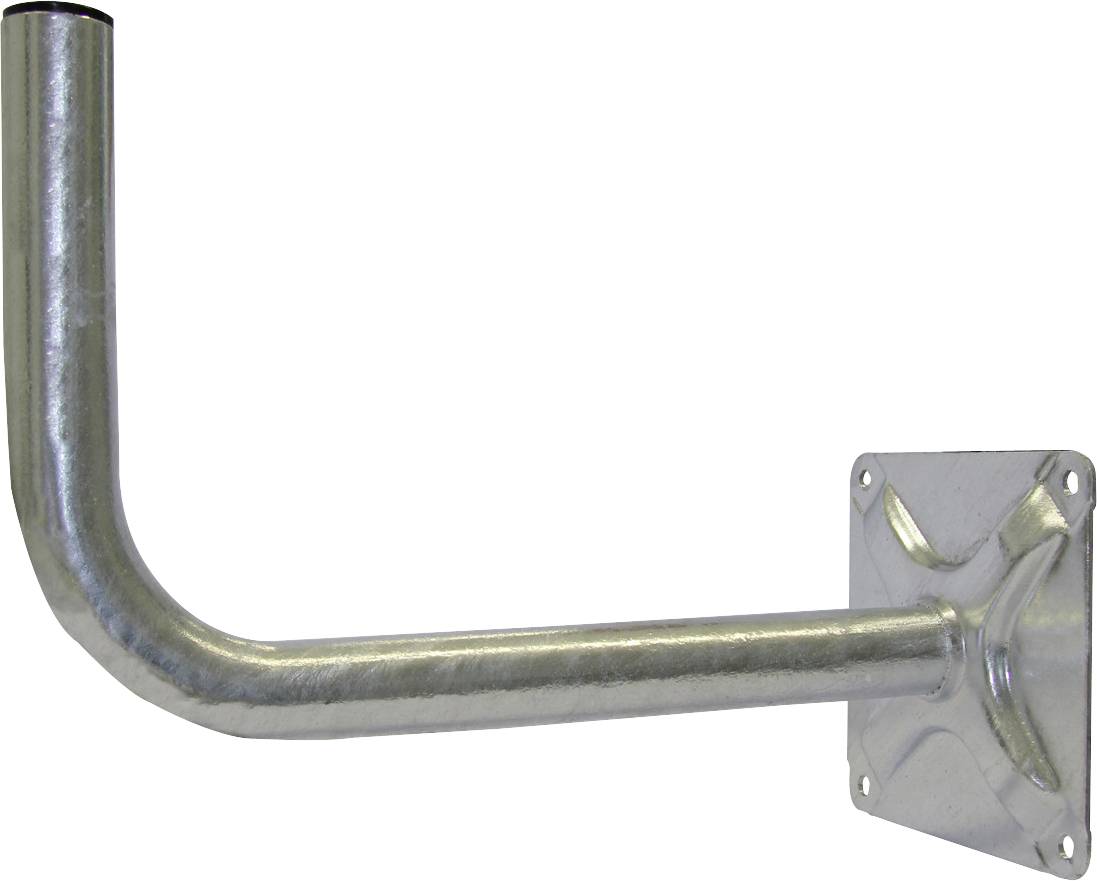

ZAS 63 wall bracket long
Highlights & Details
- Robust material: The ZAS 63 wall mount is made of steel, hot-dip galvanized, WAS ensures high resistance and durability.
- Specific compatibility: The mount is specially designed for CAS 90xx range satellite antennas.
- Large distance tothe wall : It offers a wall distance (B) of 500 mm, WAS flexibility during installation.
- High load capacity: The ZAS 63 can withstand maximum forces at the mounting points, including 710 N shearing and 1270 N tension/pressure. These values apply at a back pressure of 800 N/m² according to EN 60728-11
Technical specifications
- Product type
SAT wall mount
- Material
Steel
- Fitting site
Wall
- Projection distance
50 cm
- Height
426 mm
- (Ø)
50 mm
- Weight
4 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3479081 Kathrein ZAS 63 SAT wall mount Projection distance: 50 cm
Description
ZAS 63 wall bracket: Stability and range for your satellite reception!
The ZAS 63 is the long wall bracket from Kathrein, Ideal suitable for SAT-antennas of the CAS 90xx series. Manufactured from hot-dip galvanized steel and with a generous wall distance of 500 mm, this bracket guarantees the highest reliability and longevity. It can withstand maximum tensile/compressive forces of 1270 N (under standard conditions according to EN 60728-11) and offers precise adjustment options for azimuth and elevation.
