KD Elektronik 151222 Speed limiter Push-fit
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

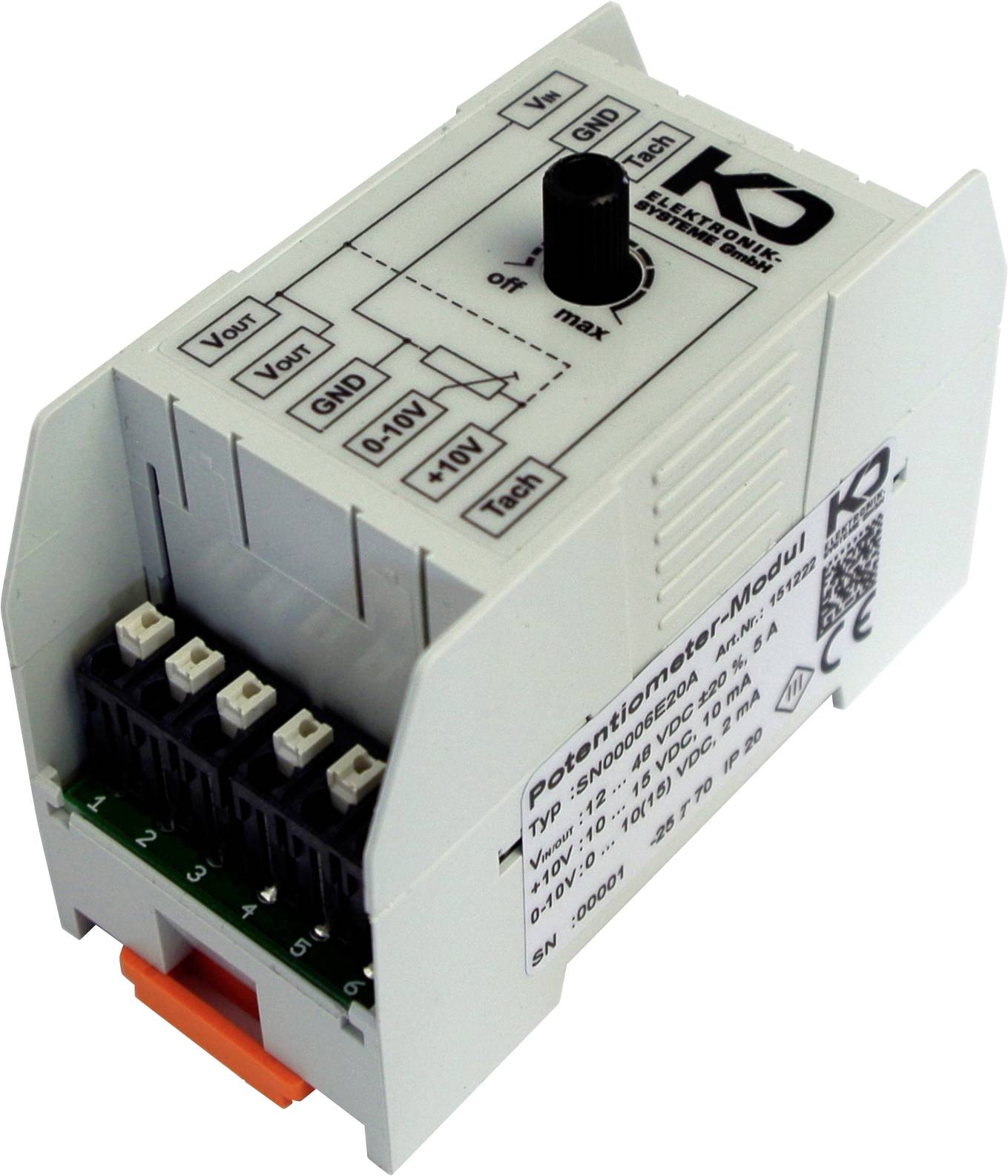

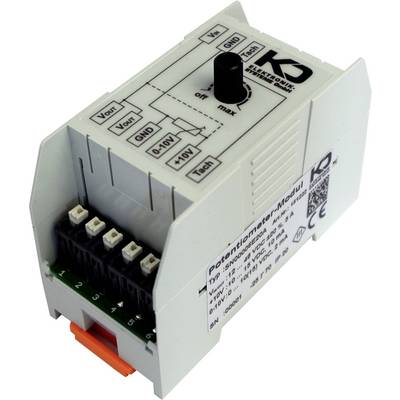

Potentiometer with casing
- Manual speed adjustment
- For AC fans with 0-10 V control input
- DC operating voltage 10 V.
- Ebm-papst interfaces compatible
Technical specifications
- Product type
Speed limiter
- Operating voltage
10 V
- Mounting type
Push-fit
- Factory colour
Light grey
- Dim
(L x W x H) 50 x 52 x 56 mm
- Width
52 mm
- Height
56 mm
- Length
50 mm
Documents & Downloads
Datasheet
Datasheet 2901005 KD Elektronik 151222 Speed limiter Push-fit
User & Safety Instructions
User & Safety Instructions 2901005 KD Elektronik 151222 Speed limiter Push-fit
Description
The potentiometer module is used to adjust the speed of motors, fans, blowers or pumps with 0-10 V control input. The module can use the +10 V voltage output of AC motors to supply power (Figure 2).
The module has a manually controllable rotary knob on the top side, which changes the control signal at the 0-10V connection with GND. The left stop of the knob corresponds to the smallest control signal.
This text is machine translated.
The module has a manually controllable rotary knob on the top side, which changes the control signal at the 0-10V connection with GND. The left stop of the knob corresponds to the smallest control signal.
This text is machine translated.
Features
- Speed control of motors, fans, blowers and pumps with 0-10 V control input.
- Potentiometer with casing
- DC-OPERATING VOLTAGE 12V & 24...48V
- 0-10V
