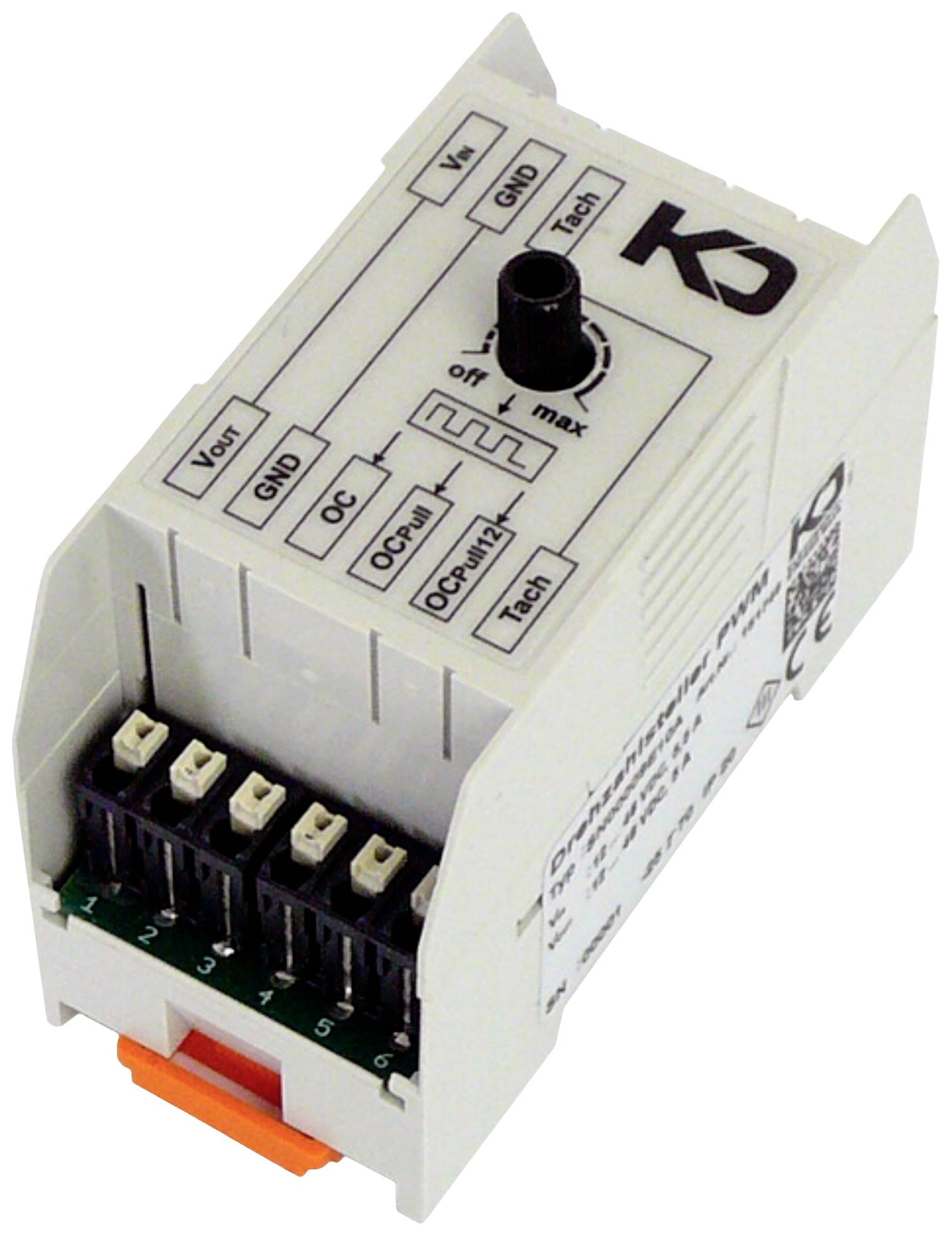

Speed controller PWM SN009E
- Fixed speed setting for DC and AC motors with a PWM control input
- Infinitely variable speed adjustment across the entire adjustment range
- Direct connection of DC-fans with up to 5 A power consumption
- Wide input voltage range 12 … 48 VDC
Technical specifications
- Product type
Speed limiter
- Operating voltage
12 V
48 V
0.8 W
- Max. contact load
5.1 A
- Factory colour
Light grey
- Weight
40 g
- Dim
(L x W x H) 76 x 36 x 60 mm
- Width
36 mm
- Height
60 mm
- Length
76 mm
Documents & Downloads
Datasheet
Datasheet 2901007 KD Elektronik 151749 Speed limiter 0.8 W
User & Safety Instructions
User & Safety Instructions 2901007 KD Elektronik 151749 Speed limiter 0.8 W
Description
The speed controller module is intended for fixed setting of a speed for motors, fans, blowers or pumps with a PWM control input. AC or DC motors can be operated, while DC motors with up to 5 A power consumption can be directly connected to the speed controller.
The module provides three different types of PWM control interfaces (Open Collector, Open Collector with Pullup, Open Collector with Pullup, and Limitation of 12V) that each output the same speed.
Optionally, the tacho-signal of a fan or Motors can be ground by the module, in order to monitor it with an upstream failure detection. The speedometer signal is directly looped through internally.
On the top of the module there is a manually operable rotary knob that changes the control signal at the three PWM control outputs from 0 % to 100 % (pulse duty factor). The left stop of the button is 0%.
This text is machine translated.
The module provides three different types of PWM control interfaces (Open Collector, Open Collector with Pullup, Open Collector with Pullup, and Limitation of 12V) that each output the same speed.
Optionally, the tacho-signal of a fan or Motors can be ground by the module, in order to monitor it with an upstream failure detection. The speedometer signal is directly looped through internally.
On the top of the module there is a manually operable rotary knob that changes the control signal at the three PWM control outputs from 0 % to 100 % (pulse duty factor). The left stop of the button is 0%.
This text is machine translated.
Features
- Speed regulator
- PWM SN00009E in housing
- 76x36x60mm
- 12-48VDC
- Max. 0.8W (without fan)
- Max. 5.1A (incl. max. Fan current)
- IP20
- Tacho signal looped
- Compatible with ebm-papst fans
- Mounting: Standard mounting rail 35 mm
- Speed adjustment of fans, pumps and motors that have a PWM control input
- Combined application with fan failure detections of the company KD electronics systems
