Buy Keithley 2182A/E Bench multimeter

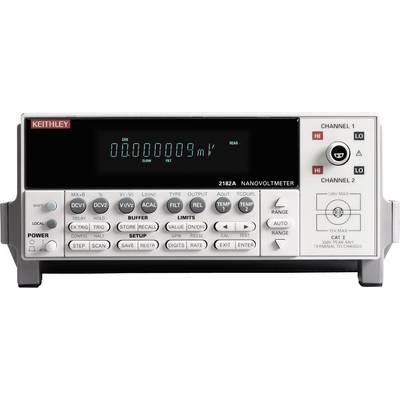

'Keithley 2182A Nanovoltmeter' displays digital readout of measured voltage, multiple control options and input interfaces.

Back of an electronic measuring instrument with various connections: Triax, RS-232, IEEE-488. Warning notices and operating instructions visible.

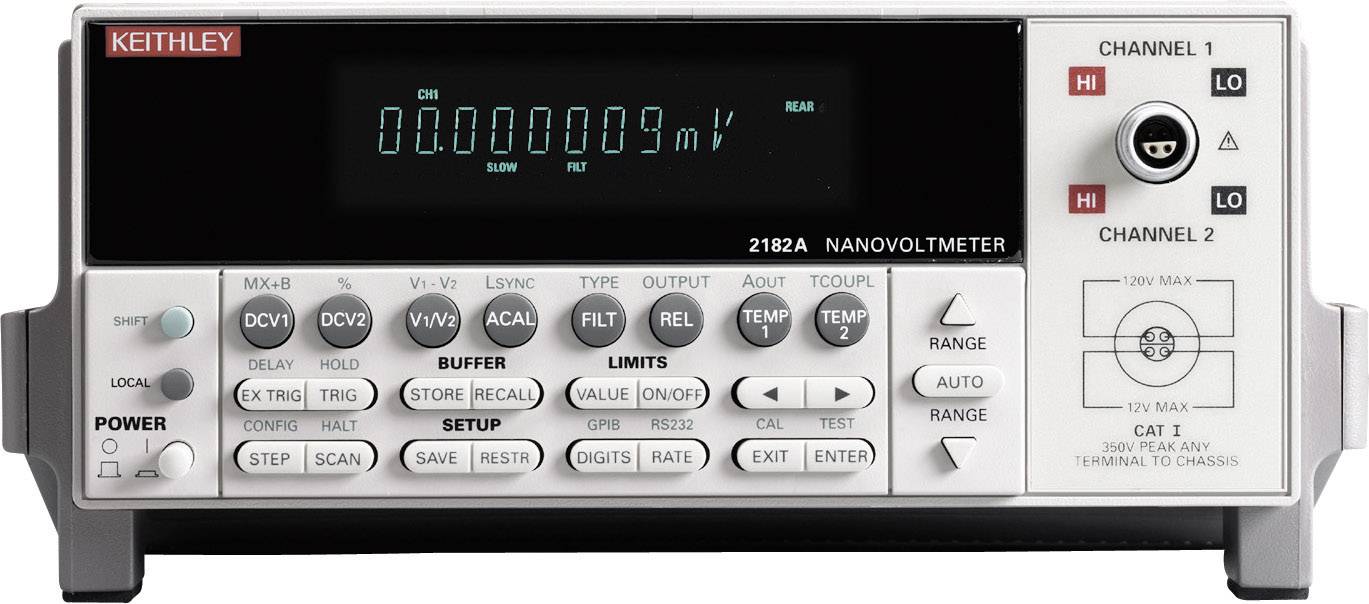

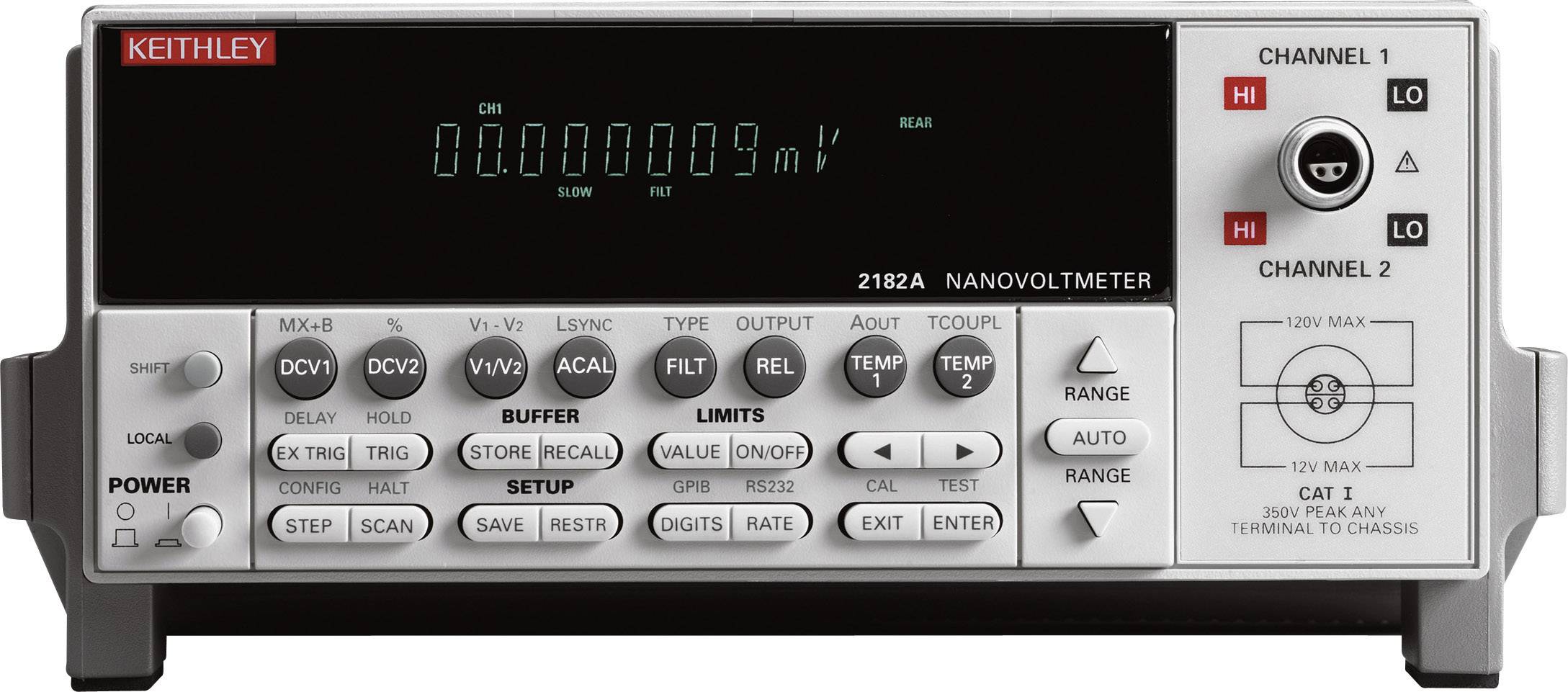

A digital nanovoltmeter with display and control elements. It shows a voltage of 0.0000009 mV. Channels and measurement settings are visible.

1/3

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 7,373.95 / piece)

€

Report legal concerns

Highlights & Details

2182A/E

Implementation of low-noise measurements at high speeds
Delta mode coordinated measurements with shift of power source
Synchronization with power for 110 dB NMRR and minimum disruption by AC common mode currents
Two channels for measurement of voltage, temperature or ratio of an unknown resistance

Technical specifications

Voltage measuring range up to 100 V DC 1 nV
Number of points 7.5 digits
DC noise at 10 mV, 6 nVp p, at 100 V is 75 µV
Resistance measurement range 0 Ω up to 1 MΩ
Temperature measurement range -200°C to +1820 °C

Product type: Bench multimeter

Power supply (details): 230 V AC

Height: 89 mm

Width: 213 mm

Weight: 5 kg

: Manufacturer's standards (no certificate)

Type: 2182A/E

Dim: (W x H) 213 mm x 89 mm

Documents & Downloads

Datasheet

Datasheet 1164900 Keithley 2182A/E Bench multimeter

User & Safety Instructions

User & Safety Instructions 1164900 Keithley 2182A/E Bench multimeter

Description

The two-channel nano voltmeter 2182 A is designed for the implementation of stable, low-noise voltage measurements as well as for the reliable and repeatable characterization of materials and components with low resistance. The device offers a higher measuring speed and a much better noise behavior as an alternative low-voltage models. Model 2182 A is the next step of keithley's nano voltmeter technology forward, it offers. Pulse ability, lower noise measurements, faster current direction reversal and a simplified resistance measurements in combination with a switchable power source.
