Buy Keithley 2450 SourceMeter Bench PSU (adjustable voltage) -200 - 200 V DC 0.1 - 1 A 20 W GPIB, USB , LAN, LXI programmabl

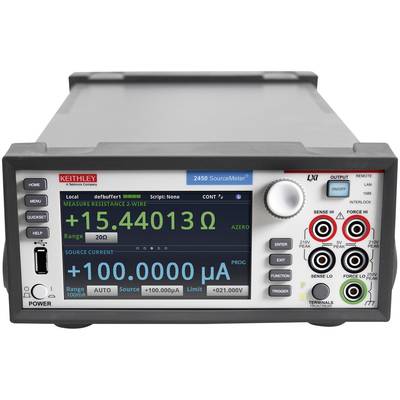

A SourceMeter device with a digital display shows measurement values: resistance of 15.44013 ohms and current of 100.000 µA.

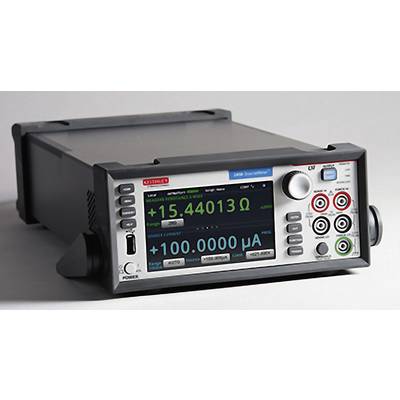

A digital multimeter displays a resistance value of '15.44013 Ohms' and a current of '100.0000 μA' on its display.

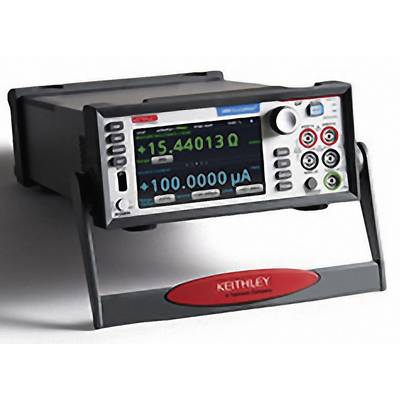

A digital multimeter with a display that shows resistance in ohms and current in microamperes.

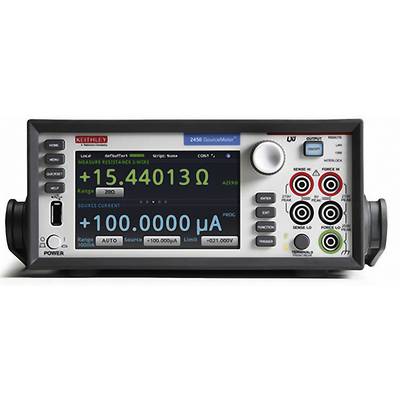

A digital multimeter displays a measurement of +15.44013 ohms. The device has several terminals and controls.

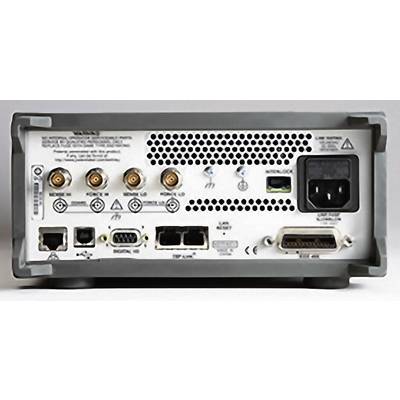

'Back of an electronic device with multiple ports and interfaces, including a power connection and BNC connectors.'

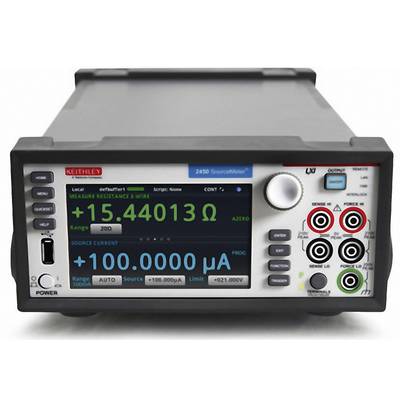

A measuring instrument displays '15.44013 Ω' resistance and '100.0000 µA' current on the display. It has several ports and adjustment knobs.

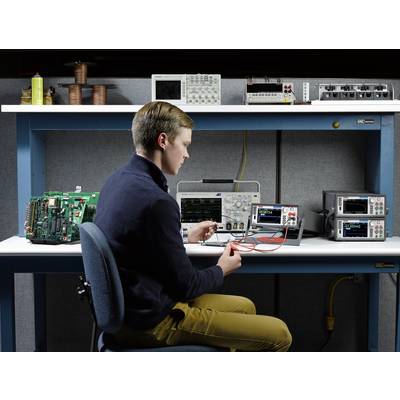

A person is working at a desk with electronic devices such as oscilloscopes and circuit boards. They are holding a clamp.

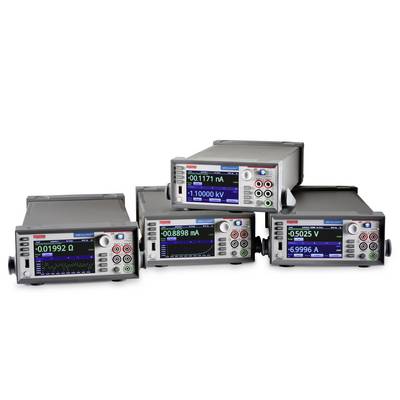

Four electronic measuring devices with digital displays are showing various measured values.

1/8

Datasheet (PDF)

Fast track dispatch on Thu, 16 Jul

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 7,407.56 / piece)

€ 7,407.56

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Model 2450 SOURCE METER SMU-instrument

No. of outputs 1 x
-200 - 200 V DC / 0.1 - 1 A
20 W
GPIB, USB , LAN, LXI
programmable

Technical specifications

Type: 2450 SourceMeter

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 20 W

Technology: SMPSU

Interfaces: GPIB
USB
LAN
LXI

Features: programmable

: Manufacturer's standards (no certificate)

Output voltage (max.): 200 V DC

Output voltage (min.): -200 V DC

Max. output current: 1 A

Output current (min.): 0.1 A

Documents & Downloads

Datasheet

Datasheet 616802 Keithley 2450 SourceMeter Bench PSU (adjustable voltage) -200 - 200 V DC 0.1 - 1 A 20 W GPIB, USB , LAN, LXI programmabl

User & Safety Instructions

User & Safety Instructions 616802 Keithley 2450 SourceMeter Bench PSU (adjustable voltage) -200 - 200 V DC 0.1 - 1 A 20 W GPIB, USB , LAN, LXI programmabl

Description

The Model 2450 is a source of keithley meters SMU instrument (Source Measure Unit) of the next generation, the real tests according to Ohm's law (current, voltage and resistance). The innovative graphical user interface (GUI) and the advanced, capacitive touch-screen technology allow intuitive operation with minimal learning curve, so that the engineers and scientists work easier and faster, smarter invent can learn. The Model 2450 is a Smu for all cases: a versatile instrument, particularly well suited for the characterization of today's modern semiconductor nanometer components and materials, organic semiconductors, printed electronics and other micro-electronics and low-power components. All this in combination with the legendary precision, resolution, accuracy and reliability of keithley. The engineers and scientists will benefit from a new and intuitive control comfort at source measure tests in accordance with the motto touch, test, InventTM.

This text is machine translated.
