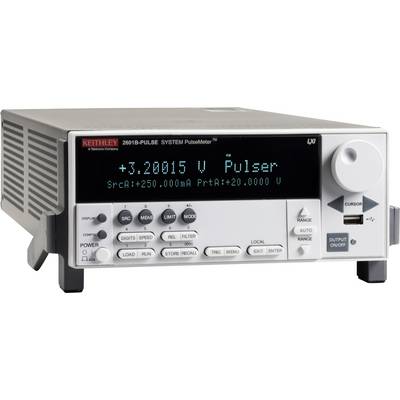

Keithley 2601B-Pulse Bench PSU (adjustable voltage) 0.100 - 40 0.0001 mA - 10 A 40 W USB , RS232, Ethernet, GPIB program
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18,668.07 / piece)
€ 18,668.07
plus VAT.
Highlights & Details
2601B-PULSE System SourceMeter
- No. of outputs 1 x
- 0.100 - 40 / 0.0001 mA - 10 A
- 40 W
- USB , RS232, Ethernet, GPIB
- programmable
Technical specifications
- Minimum pulse width: 10 µs
- Maximum pulse (current): 10 A.
- Maximum DC (current): 3 A.
- Min Current: 100 Na
- Pulse accuracy: 0.17%
- DC accuracy 0.015%
- Max. Measuring speed: 1MS/s.
- Type
2601B-Pulse
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
40 W
- Interfaces
USB
RS232
Ethernet
GPIB
- Features
programmable
- Dim
(L x W x H) 445 x 235 x 105 mm
Manufacturer's standards (no certificate)
- Weight
4.75 kg
- Type
Desktop equipment
- Output voltage (max.)
40 V
- Output voltage (min.)
0.100 V
- Max. output current
10 A
- Output current (min.)
0.0001 mA
- Width
235 mm
- Height
105 mm
- Length
445 mm
Documents & Downloads
Datasheet
Datasheet 2252318 Keithley 2601B-Pulse Bench PSU (adjustable voltage) 0.100 - 40 0.0001 mA - 10 A 40 W USB , RS232, Ethernet, GPIB program
User & Safety Instructions
User & Safety Instructions 2252318 Keithley 2601B-Pulse Bench PSU (adjustable voltage) 0.100 - 40 0.0001 mA - 10 A 40 W USB , RS232, Ethernet, GPIB program
Description
The new 2601B-PULSE System SourceMeter10 µs Pulser/SMU Instrument with PulseMeter™ technology is an industry leading high-current/high-speed pulser with measurement and full functionality of a traditional SMU. This new pulse generator offers a 10-amp current pulse output at 10 V with a pulse width of 10 µs, perfect for testing vertical surface emitting lasers with cavity (VCSEL) used in LIDAR and face detection, lighting and display LEDs, general mode filters, semiconductor device characterization, surge protection testing and much more. The integrated pulse generator dual 1 Megasampler/second (MS/s) and 18-bit digitizer enable the acquisition of both pulse currents and voltage waveforms simultaneously without the need for a separate instrument. The 2601B-PULSE is a powerful solution that significantly increases productivity. Because the 2601B PULSE provides complete isolation that does not require a mainframe, it can be easily reconfigured and re-deployed as your test application evolves.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2601B-P-INT 2601B-PULSE Rear Panel Interlock
- Cable connector box
- 7709-308A digital I/O connector
- 17469460X TSP-Link/Ethernet cable (2x)
- CS-1616-3 Safety Interlock Mating Connector
- 2601B-PULSE QuickStart Guide
