Buy Keithley 2636B Bench PSU (adjustable voltage) 0 - 200 0 - 10 A 60 W No. of outputs 2 x

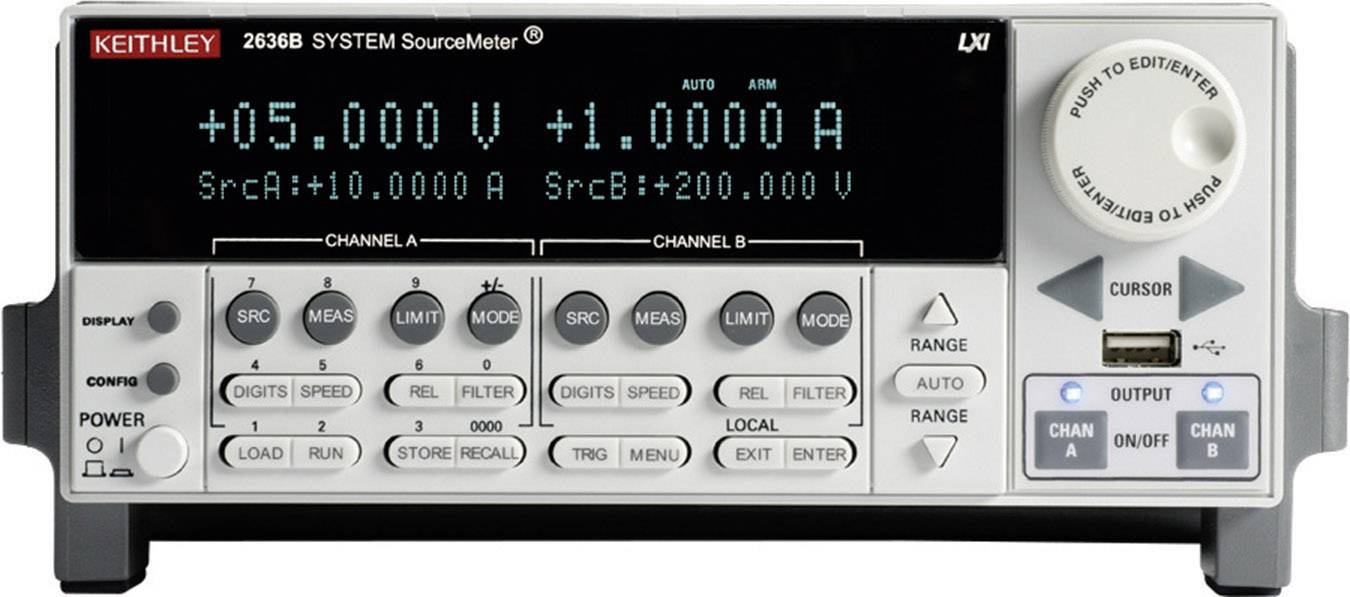

A SourceMeter instrument with two channels displays +05.000 V and +1.0000 A. Numerous buttons for settings and measurements.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 27,584.03 / piece)

€ 27,584.03

plus VAT.

Report legal concerns

Highlights & Details

Model2636B SOURCE METER SMU instrument, 2-Kannal, (0.1fA, 200V, 1.5A DC/10A pulse)

No. of outputs 2 x
0 - 200 / 0 - 10 A
60 W

Technical specifications

Two-channel 60W output power (30W/channel)
6.5 digit resolution
Output current Max/Min: 1.5A DC, 10A Impulse/0.1fA
Output voltage Max/Min: 200v/5µV
Load stabilization ±(20mV + 100μV) and ±(100µA + 100pA)
Mains control ≤ ± 20mV (0.01%) and ≤ ± 100µA (0.01%)
Remaining ripple 20mV (10Hz-20MHz)

Type: 2636B

Product type: Bench PSU (adjustable voltage)

No. of outputs: 2 x

: 60 W

Dim: (W x H x D) 213 x 89 x 460 mm

: Manufacturer's standards (no certificate)

Weight: 4.75 kg

Connections: Banana jacks at front

Type: Table device

Output voltage (max.): 200 V

Output voltage (min.): 0 V

Max. output current: 10 A

Output current (min.): 0 A

Inputs: IEC 320 C14

Load balance: ±(20mV + 100μV)
±(100µA + 100pA)

Mains control: ≤ ±20 mV (0.01%)
≤ ± 100 µA (0.01%)

Width: 213 mm

Height: 89 mm

Residual ripple: 20mV (10Hz-20MHz)

Output current 1: 0A up to ±10 A A

Depth: 460 mm

Input voltage: 100 - 250 V AC

Output voltage 1: 0V bis ± 200V V

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

No. of outputs

Output current

Keithley 2636B Bench PSU (adjustable voltage) 0 - 200 0 - 10 A 60 W No. of outputs 2 x

Item no:1164909

This article

60 W

Manufacturer's standards (no certificate)

0 - 200

2 x

0 - 10 A

Keithley 2636B Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 200 V 0 - 10 A 60 W No. of outputs 2 x

Item no:1237844

60 W

ISO standards

0 - 200 V

2 x

0 - 10 A

Keithley 2636B Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 200 0 - 10 A 60 W No. of outputs 2 x

Item no:1241361

60 W

DAkkS standards

0 - 200

2 x

0 - 10 A

Keithley 2612B Bench PSU (adjustable voltage) 0 - 200 0 - 10 A 60 W No. of outputs 2 x

Item no:1897677

60 W

Manufacturer's standards (no certificate)

0 - 200

2 x

0 - 10 A

Keithley 2602B Bench PSU (adjustable voltage) 0 - 40 0 - 10 A 60 W No. of outputs 2 x

Item no:1897684

60 W

Manufacturer's standards (no certificate)

0 - 40

2 x

0 - 10 A

Tektronix 2604B Bench PSU (adjustable voltage) 40 (max.) 10 A (max.) 40.4 W USB , GPIB, RS232, LXI No. of outputs 2 x

Item no:3190760

40.4 W

Manufacturer's standards (no certificate)

40 (max.)

2 x

10 A (max.)

Tektronix 2611B Bench PSU (adjustable voltage) 200 (max.) 10 A (max.) 30.3 W USB , GPIB, RS232, LXI No. of outputs 1 x

Item no:3190762

30.3 W

Manufacturer's standards (no certificate)

200 (max.)

1 x

10 A (max.)

Tektronix 2614B Bench PSU (adjustable voltage) 200 (max.) 10 A (max.) 30.3 W USB , GPIB, RS232, LXI No. of outputs 2 x

Item no:3190763

30.3 W

Manufacturer's standards (no certificate)

200 (max.)

2 x

10 A (max.)

Tektronix 2634B Bench PSU (adjustable voltage) 200 (max.) 10 A (max.) 30.3 W USB , GPIB, RS232, LXI No. of outputs 2 x

Item no:3190764

30.3 W

Manufacturer's standards (no certificate)

200 (max.)

2 x

10 A (max.)

Tektronix 2635B Bench PSU (adjustable voltage) 200 (max.) 10 A (max.) 30.3 W USB , GPIB, RS232, LXI No. of outputs 1 x

Item no:3190765

30.3 W

Manufacturer's standards (no certificate)

200 (max.)

1 x

10 A (max.)

Documents & Downloads

Datasheet

Datasheet 1164909 Keithley 2636B Bench PSU (adjustable voltage) 0 - 200 0 - 10 A 60 W No. of outputs 2 x

User & Safety Instructions

User & Safety Instructions 1164909 Keithley 2636B Bench PSU (adjustable voltage) 0 - 200 0 - 10 A 60 W No. of outputs 2 x

Description

Model 2600 Series B2636B source meters of the family is a new improved single-channel SMU-measuring device with a built-in four-quadrant design. It enables simultaneous feed/measurement of voltage/current. This results in a higher productivity applications in R&D to automated tests in the framework of the production. In addition to the functions of model2636A offers model2636B a resolution of 6½, USB2.0 connection and software command emulation of the Model 2400 source meter, so that a simple transfer of older test codes is possible. Model2636B is equipped with high-speed TSP-technology from keithley (over 190% faster than conventional PC instruments communication), whereby at the system level a much better speed is given and therefore more cost-effective tests can be run. The High Dynamic Range (1.5A DC, 200V, 0,1fA) This SMU allows in a wide range of applications to work.

This text is machine translated.

Scope of delivery

Power cord
User manual
Data sheet
Model 7709-308 A DB25 plug
CA -180-3 A TSP-link cable
Cable mounting set
3 LUG Triax with 3 alligator clips
